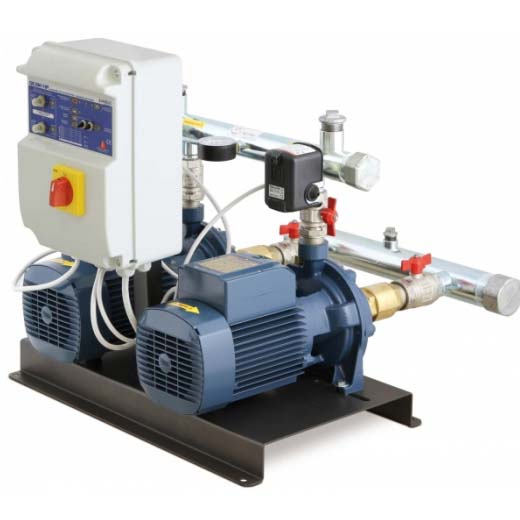

Pedrollo Pressure Boosting Sets, 2.2kW, 440L/min, CB2-CP25/160AR

PREFER CONTACT KENT

Model: CB2-CP25/160AR (Two Single-stage Centrifugal Pumps)

Price inclusives 6%GST.
Description

• COMBIPRESS are twin pump sets for water pressurisation, with a range to suit the requirements of domestic, civil agricultural and industrial applications.

Principle of Operation

• COMBIPRESS pressure booster sets are pre-assembled ready for installation.
• The sets operate as "duty-assist", with one or both pumps starting automatically in succession as demand for water increases.
• This system is enery efficient as it only starts the pumps necessary to meet the demand.
• The lead pump is alternated automatically by the control panel.

Use
Clean water and chemically non aggressive liquids:

• Water Supply: pressure boosting for industry, condominiums, hotels, communities, water treatment plants, camping sites, schools, hospitals, barracks, etc.
• Irrigation: football and sports, grounds, golf courses, agriculture and artical snow systems.

Construction Characteristics

• PUMPS complete with suction  and delivery manifolds, ball valves and non-return valves.
• BASE made of powder-painted metal sections.
• Control systems PRE-INSTALLED on the delivery manifold, comparising of pressure gauge, connection for pressure vessel (not supplied), and two user adjustable pressure switches. The factory settings are shown in the following tables.
• CONTROL PANEL with door interlocked power switch, low voltage pressure switch control circuit, automatic pump changeover, thermal motor protector and "anti-bounce" system to ensure that the pumps run for an acceptable period once started.
  • CB2m: Single Phase 230V - 50Hz including capacitor, and with integral thermal overload protection.
  • CB2: Three Phase 230/400V - 50Hz up to 4kW
                                      400/690V - 50Hz from 5.5 to 18.5kW

Specifications
