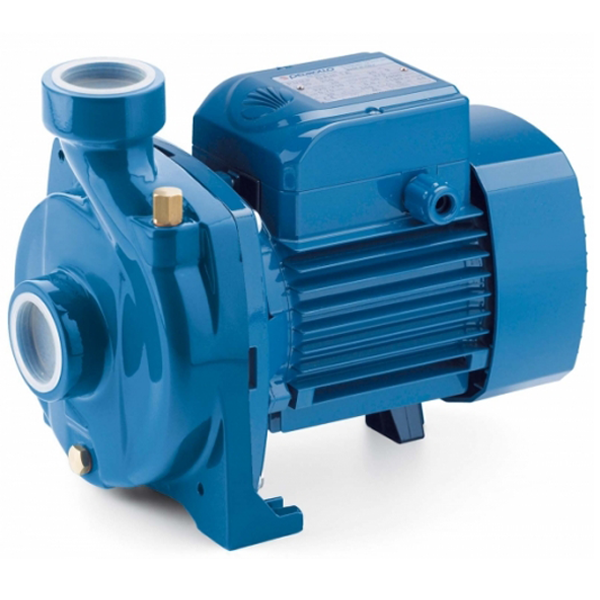

Pedrollo Open Impeller Pump 750W, 50~350L/min, 19.5~6m NGA1A

Pedrollo Open Impeller Pump 750W, 50~350L/min, 19.5~6m NGA1A
Pedrollo Open Impeller Pump 750W, 50~350L/min, 19.5~6m NGA1A

Pedrollo Open Impeller Pump 750W, 50~350L/min, 19.5~6m NGA1A

Product Code: NGA1A
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: NGA1A (Three phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging.
  • As a result of these characteristics the NGA series pumps are used specifically in industry and for transferring water from canals, rivers, reservoirs, tanks, etc.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.


Pumped liquid: clean or relatively laden water

Use: domestic, industrial, agricultural

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
  • Ambient temperature between -10 °C and +40 °C
  • Max. working pressure 6 bar
  • Passage of suspended solids up to Ø 10 mm
  • Continuous service S1

Specifications

Size Discharge   1-1/2" x 1-1/2"
Power 750 W / Single phase
Flow Rate 50 ~ 350 L/min
Head 19.5 ~ 6 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   297mm x 190mm x 227mm
Weight 11.9 kg
