Product Code: CP210B
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

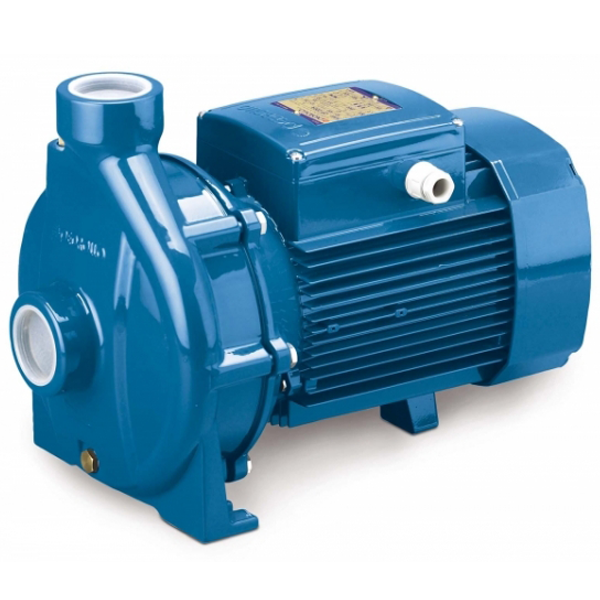

Model: CP210B (Three Phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • As a result of their reliability and the fact that they are easy to use, these pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in conditioning and cooling systems, for irrigation, etc.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.


Pumped liquid: clean water

Use: civil, industrial, agricultural

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature between -10 °C and +40 °C
  • Max. working pressure 10 bar
  • Continuous service S1

Specifications

Size Discharge   1-1/2" x 1"
Power 3.0 kW / Three phase
Flow Rate 50 ~ 270 L/min
Head 56 ~ 33 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   390mm x 252mm x 305mm
Weight 30.9 kg
