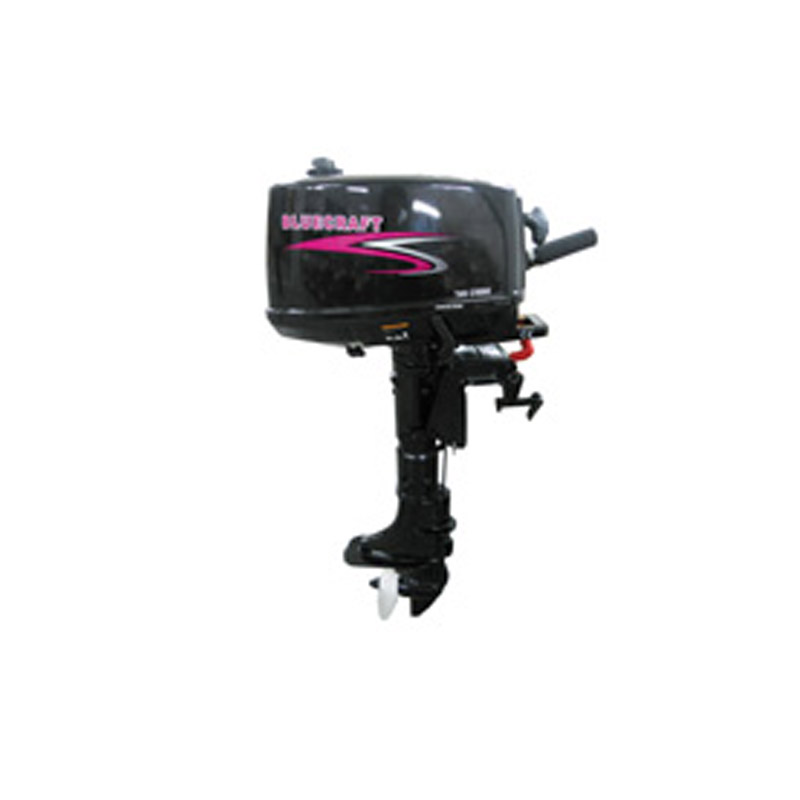

Outboard Engine

Product Code: Bluecraft T5S

Availability: Pre Order

Model	Bluecraft T5S
Length mm(in.)	677 (26.7)
Width mm (in.)	322 (12.7)
Height mm (in.)	1011 (39.8)
Transom Height mm (in.)	440 (17.30)
Net Weight (kgs)	21
Full throttle operating range (r/min)	4500-5500
Maximum output (kw(hp)@r/min)	3.7(5)@5000
Idling Speed (r/min)	1100-1200
Engine type	2-Stroke
Cylinder quatity	1
Displacement (cm³)	102
Bore x Stroke (mm (in.))	52×45(2.05 x 1.77)
Control system	Tiller
Starting system	Manual
Gear positions	Forward-neutral-reverse
Gear ratio	2.08(27/13)
Trim and tilt system	Manual Tilt
Fuel tank volume (L)	2.8
Engine fuel ratio	Gasoline : engine oil =50:1
Gear oil (cm³)	320
Propeller spec (in)	3-7 1/7″ x 7″
