Product Code: TW500-3 (3 phase)
Availability: Pre Order
Loading ...
Share:

Model: TW500-3 (3 phase)

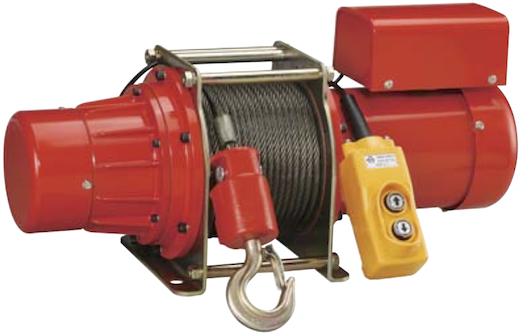

Electric winch with lifting capacitu up to 500kg.

Made in Taiwan. Included Taiwan safety tested certificated.

Price inclusives 6%GST.

Features

  • High reputed manufacturer from Taiwn with their outstanding R&D capability and extensive experience.
  • Light weight & compact design allows mounting convenient.
  • When rope touches the limit arm, hoisting is automatically stopped.
  • A sensor arm stops the motor when the rope is reverse sinding.
  • Dynamic brake designs for both static and dynamic loading.
  • Separated quick connection for convenience.
  • 360° universal joint saddle hook with safety latch.

Specifications

Capacity 500kg
Steel Rope 8mm x 30m
Speed 9.5-18m/min
Voltage 415V / 50Hz / 3 Phase
Motor 1.6W
Packing Dimensions (L x W x H) 685mm x 270mm x 325mm
Net Weight 48.6kg
Gross Weight 50.4kg
