Product Code: TW200 (single phase)
Availability: Pre Order
Loading ...
Share:

Model: TW200 (single phase)
Electric winch with lifting capacitu up to 200kg.

Made in Taiwan. Included Taiwan safety tested certificated.

Price inclusives 6%GST.

Features

  • High reputed manufacturer from Taiwn with their outstanding R&D capability and extensive experience.
  • Light weight & compact design allows mounting convenient.
  • When rope touches the limit arm, hoisting is automatically stopped.
  • A sensor arm stops the motor when the rope is reverse sinding.
  • Dynamic brake designs for both static and dynamic loading.
  • Separated quick connection for convenience.
  • 360° universal joint saddle hook with safety latch.

Specifications

Capacity 200kg
Steel Rope 6mm x 30m
Speed 7.5-13.5m/min
Voltage 230V / 50Hz / Single Phase
Motor 0.5kW
Packing Dimensions (L x W x H) 535mm x 270mm x 325mm
Net Weight 29.2kg
Gross Weight 30.6kg

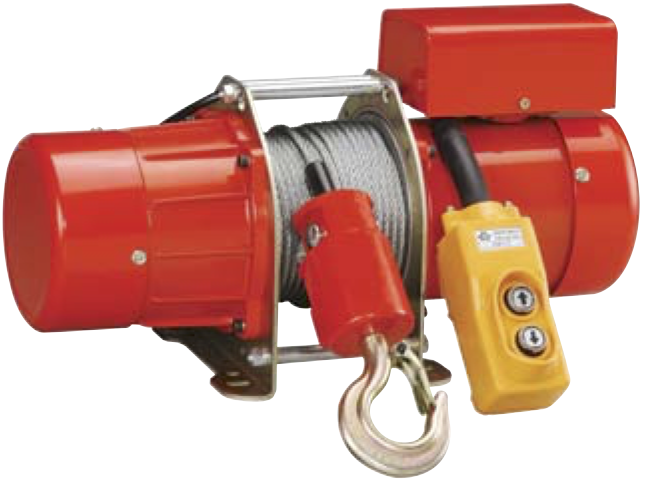

Click to enlarge
