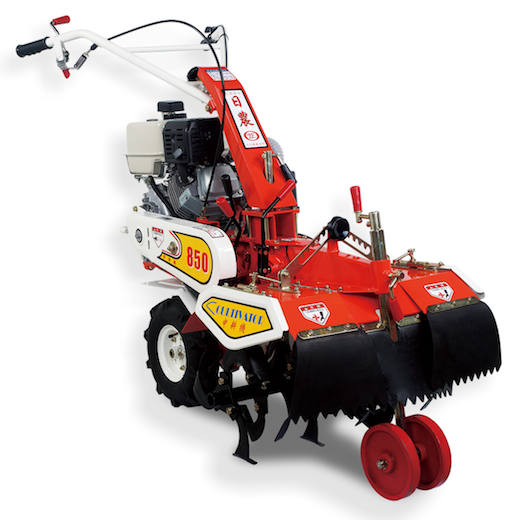

Nichino Cultivator, Tillier, BankingUp, Weeding, Furrowing 850S

Product Code: 850S (Made in Taiwan)

Availability: Pre Order

Features:

3 types of clutch lever for choosing :
(a) CE type lever (safety mode)
(b) Push type lever
(c) Hand-Press type lever
The 6-rotary tillage blade is adjustable. Depend on the width of the cultivating
It can be changed to 4-rotary or 8-rotary tillage blade.
According to farming needs to adjust the guide wheel height, to do the deep & shallow tillage.
To add the ground-breaking blade for cultivating the hard land (black soil).
Handle adjustment : 5-section orientation height adjustment . Depend on operator's working demand to adjust the height of the handle.
The handle base can rotate within 340ﾟand set at 22 position. Depend on the topography conditions , it may adjust to any degree for operating.
Can fit with the Two-side plow to do the V-shape hilling up and fit the side hilling up blade to do the side hilling up.
Light weight , easy to work and turnaround in the field.
Ergonomic design to improve the comfort of operation , reduce operator fatigue.
Heavy duty petrol engine (Made in Japan).

Description

Model: 850S (Made in Taiwan)
NICHINO all in 1 farming machine with 10HP 4-stroke Japan gasoline engine.

Bed forming (hilling up)
Cultivating
Furrowing
Loosening
Weeding
Trenching

Features

3 types of clutch lever for choosing :
(a) CE type lever (safety mode)
(b) Push type lever
(c) Hand-Press type lever
The 6-rotary tillage blade is adjustable. Depend on the width of the cultivating
It can be changed to 4-rotary or 8-rotary tillage blade.
According to farming needs to adjust the guide wheel height, to do the deep & shallow tillage.
To add the ground-breaking blade for cultivating the hard land (black soil).
Handle adjustment : 5-section orientation height adjustment . Depend on operator's working demand to adjust the height of the handle.
The handle base can rotate within 340ﾟand set at 22 position. Depend on the topography conditions , it may adjust to any degree for operating.
Can fit with the Two-side plow to do the V-shape hilling up and fit the side hilling up blade to do the side hilling up.
Light weight , easy to work and turnaround in the field.
Ergonomic design to improve the comfort of operation , reduce operator fatigue.
Heavy duty petrol engine (Made in Japan).

Specifications

Engine Type	Air Cooled, 4-cycle, OHV Gasoline Engine (Made in Japan)
Engine Maximum Output	10HP / 7500kW
Gear Shift Mode	Direct Shiting-Gear (2 forward & 2 reverse)
Forward Speed	Hi: 3.5km/hour Lo: 1.84km/hour
Reverse Speed	Hi: 4.86km/hour Lo: 2.58km/hour
Adjustable Tread	180mm to 360mm
Type of Tire	W/Herringbone design
Tilling Capacity	Depth: 30-250mm Width: 650mm
Banking Up Capacity	Depth: 30-300mm Width: 300mm(Standard size)
Transmission Mode	Belt/Tension Wheel Drive
Dimensions (L x W x H)	1550mm x 670mm x 970mm
Weight without Engine	110kg
