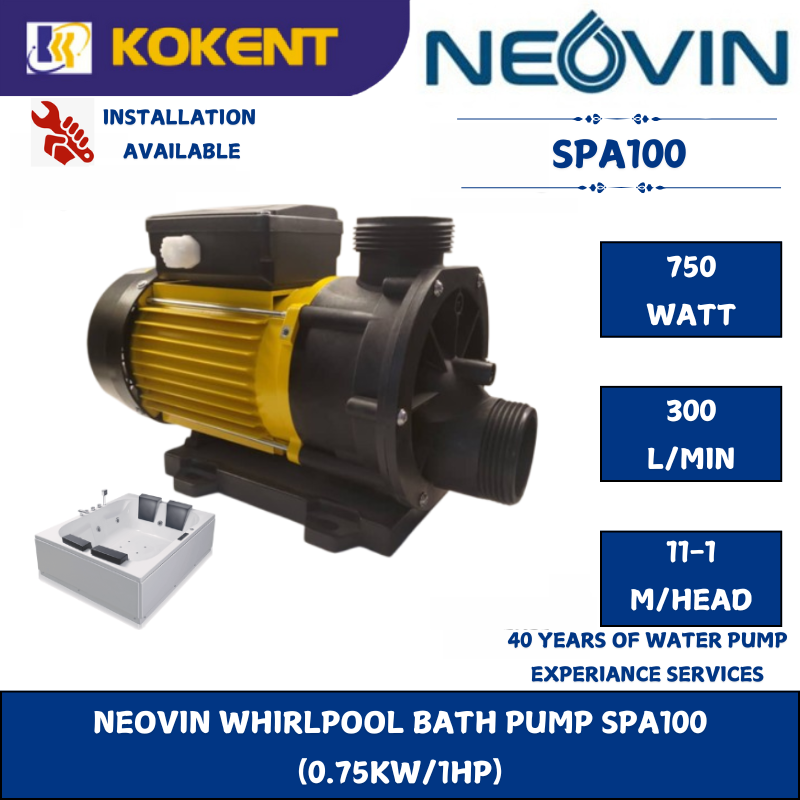

NEOVIN WHIRLPOOL BATH PUMP SPA100 (0.75KW/1HP)

Product Description

NEOVIN SPA100 CIRCULATION WHIRLPOOL BATH PUMP

The Neovin SPA series has been one of the longest serving pumps built by Neovin and built to ensure it remains watertight during long periods of continuous operation.

The SPA100 has a low positioned centre suction port enables the pump to self-drain once the motor is shut off.

It would most commonly be used as a circulation pump on hot tubs, swim spas and swimming pool systems. But can also be fitted to many whirlpool baths as well.

Feature:

.Motor chassis in aluminum

.Reinforced upper turbine

.Single-phased pump with thermal overheat protection

.This pump is perfect for the hydro-massage spas and bathtubs.

.Possibility to connect a pneumatic button for the spas that do not have an electric control box

Specification:

Brand Neovin

Model SPA100

Type circulation whirlpool bath pump

Voltage 220-240V 50Hz Phase single (PH1)

Power 0.75kW / 1.0Hp

Current 3.8A

Speed 2900r/min

Rated flow rate 50-280L/min

Max. flow rate 300L/min

Rated head 11-1mtr

Max. head 12mtr

Inlet & outlet size 1.5-inch / 48mm

Max. ambient temperature 40°C

Max. water temperature 50°C

Insulation Class 155 (F)

Protection rating IP 55

Capacitor 15uF / 450V

Thermally protected
