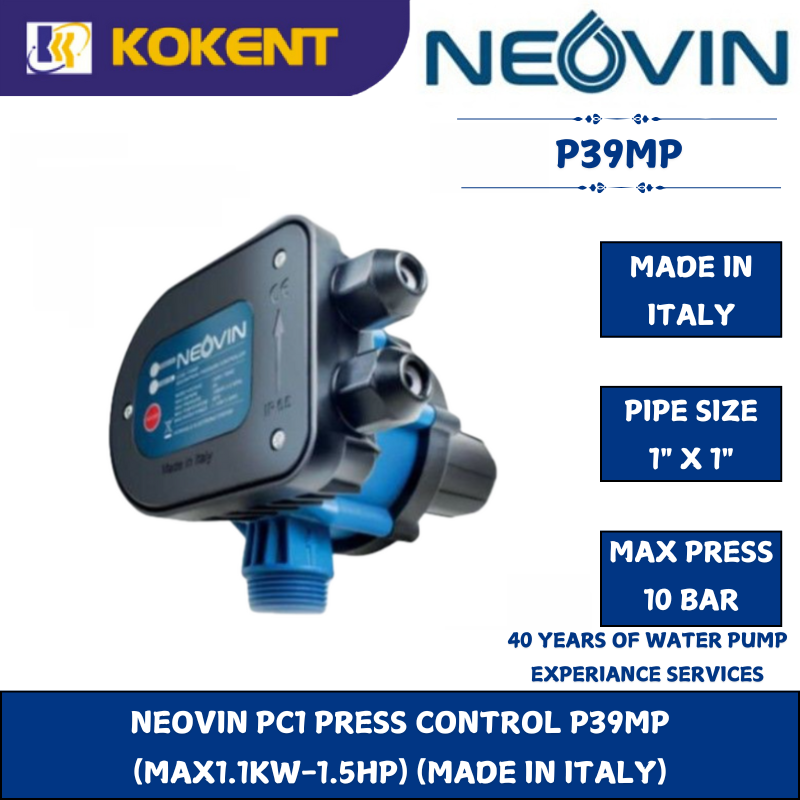

NEOVIN PC1 PRESS CONTROL P39MP (MAX1.1KW-1.5HP) (MADE IN ITALY)

Neovin P39MP (1.5Hp) 1.1kW Pump Electronic Pressure Controller (Italy Made)

Model P39MP

ELECTRONIC DEVICE FOR CONTROL AND PROTECTION OF THE PUMP

**Features** .

.Starts and stops the pump depending on opening and closing of the taps.

.Stops the pump in case of a water shortage and protects it against dry running.

.Can be installed on surface and submersible pumps.

.No need for an expansion tank, check valve, filter or fittings.

.Maintenance free.

.Made in Italy

**Specifications**

Brand Neovin

Model P39MP

Made in Italy

Single-phase mains voltage 230 Vac

Acceptable voltage fluctuation +/- 10%

Frequency 50-60 Hz

Maximum Current 8 A

Maximum Power 1,1 kW (1,5 HP) a 230V

Protection degree IP 65

Maximum operating pressure 10 bar

Maximum operating temperature 60°C

Minimum flow ~ 1 l/min

Male connections Gc 1”

Certified by TÜV SÜD:

Certificate No. B 12 11 73297 007
