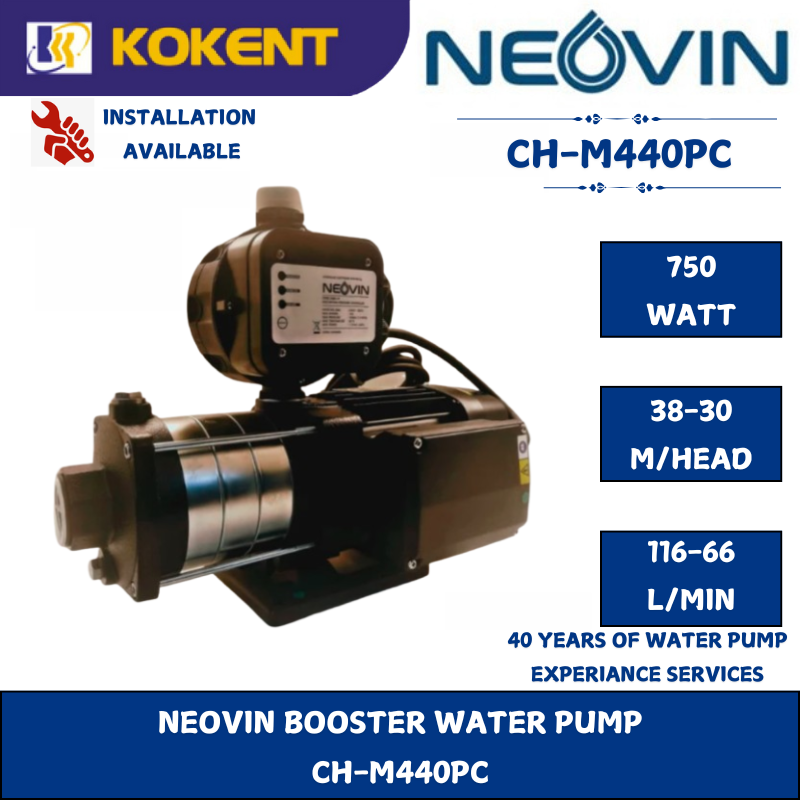

NEOVIN BOOSTER WATER PUMP CH-M440PC (11/4"X1") (0.75KW/1.0HP/240V/1PH/50HZ)

Neovin CH-M440 PC Horizontal Multi-Stage Booster Pump 1.0Hp / 750W..

Model CH-M440-PC (Auto)

Neovin CH-M Series of horizontal, multi-stage, stainless-steel centrifugal pumps are designed for pumping clean water and non-aggressive chemical liquids.

These pumps are suitable for automatic water distribution in domestic applications or, thanks to their high head, can be used as a pilot pump for pressurisation units.

**Application**

¤ Cooling Water System

¤ Domestic Water Supply

¤ Industrial Cleaning

¤ Agriculture

¤ Pesticide Dosing System

¤ Environmental Protection

¤ Water Treatment

¤ Boosting & Circulation System

**Features**

• Low noise quiet operation

• Motor with cooper winding

• Built-in thermal protector for single phase motor

• Insulation class F

• Protection class IP55

• Max. ambient temperature: +50℃

• Max. liquid temperature +70°C

• Max pressure 10 bar

• Manufacturer warranty 12 months

**Specifications**

Brand Neovin

Model CH-M440-PC (Auto)

Pump type horizontal multi-stage centrifugal pump

Standard voltage 220-240V / 50Hz

Single phase (1-phase)

Motor power 0.75kW (1.0Hp)

Current 5.2A

Rated head 30meter

Max. head 38meter

Rated flow 4.0m3/hour (66L/min)

Max. flow 7.0m3/hour (116L/min)

Max. temperature 70°C

Inlet size 1-1/4-inch / 32mm

Outlet size 1-inch / 25mm

Speed 2900RPM

Insulation Class F

Enclosure Class IP55

Capacitors 20uF/450V
