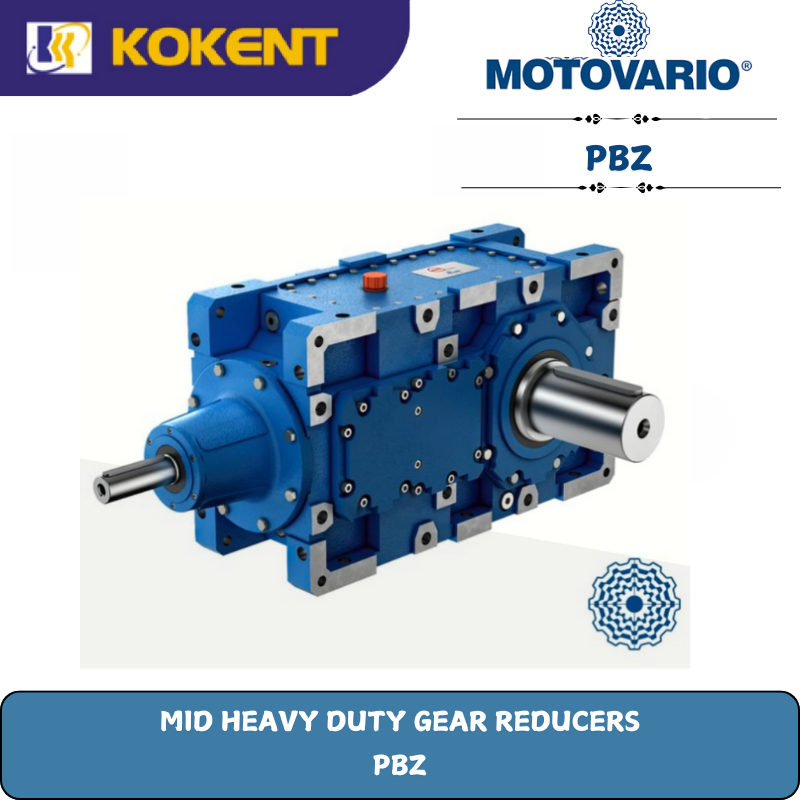

Mid Heavy Duty gear reducers

PBZ

CONTINUOUS DUTY WITH REDUCED MAINTENANCE COSTS

The Motovario PBZ series consists of parallel helical and bevel-helical gear reducers up to 4 reduction stages, characterised by high power density, compact  size, modularity, reliability and a favourable performance/sturdiness ratio.
These industrial gear reducers have been conceived and designed for continuous, critical and particularly arduous applications requiring a high number of accessories, as well as dedicated options for specific fields: PBZ units perfectly meet all these needs, fully satisfying the heavy-duty industry world.

Characteristics

• Sizes: 179, 199, 219, 249, 269, 279, 319, 349, 399, 409
• Gearing: 2, 3, and 4 stages for parallel gear reducers, and 3, and 4 stages for helical bevel gear reducers
• Nominal output momentum 110,000 Nm (n₁= 1400 rpm)
• Available input versions: P – with bell gear and joint, I – with solid shaft
• Available output versions:
  • HC - hollow output shaft with key slot
  • HL - hollow output shaft with locking unit
  • CS - cylindrical solid output shaft with key
  • CD - cylindrical double outlet solid output shaft with key
• Gears and sprockets: hardened and case-hardened 21NiCrMo2 steel
• Reduction ratios ranging from 6 to 419
• EN-GJS400-15 UNI EN 156 cast-iron casing
• Outer protection with two-component water-based paint, minimum coat thickness 80 microns.
• RAL 5010 blue
