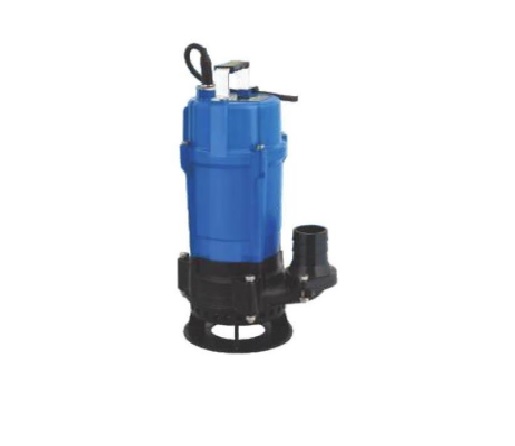

MEUDY Submersible Slurry Pump (II)

MEUDY Submersible Slurry Pump (II)
MEUDY Submersible Slurry Pump (II)

MEUDY Submersible Slurry Pump (II)

Product Code: FDM Series
Availability: Pre Order
Loading ...
Share:

Features :

  • High effective motor competent to pump highly laden mud water.
  • The impeller and agitator is made of high chrome allow ensure great durability.
  • Semi Vortex impeller design reduce the clogging situation by sand.

Specification:

  • Civil engineering, building sites, basements or utility pits, rainwater, mud water and fluid with high abrasive.

Application:

  • Water temperature : up to 40°C.
  • PH : 6.5 to 8.5
  • Power supply : single phase 220V±10%, 50Hz
  • Insulation class : F
  • Protection class : IP68
  • Maximum immersion depth : 10m
  • Cable length : 8m
MODEL OUTLET (mm) MOTOR POWER (kw) MOTOR POWER (Hp) MAX. HEAD (m) MAX CAPACITY IMPELLER PASSAGE N. W (kg) G.W (kg) PACKING SIZE (mm)
FDM2.55 50 0.55 0.75 13 13m³/h , 0.22m³/min 9 15.5 16.5 455X255X230
FDM2.55 (F) 50 0.55 0.75 13 13m³/h , 0.22m³/min 9 15.5 16.5 455X255X230
