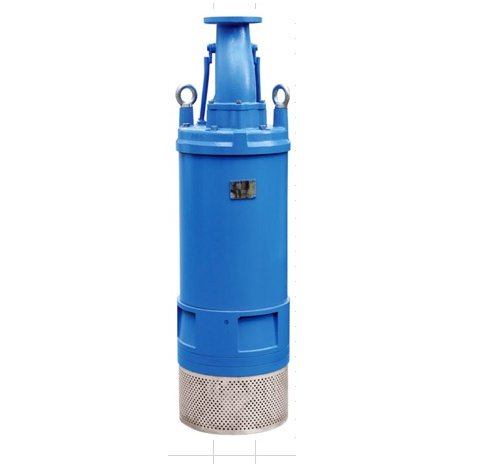

MEUDY SH Submersible Drainage Pump (II)

Featurs:

• The body of motor & pump is made of rigid cast iron for long-lasting durability
• Greatly increased max. submersion depth due to double machanical seal resistant to high pressure.
• Hydraulic part under the motor and motor cooled by the pumped water for safe operation also with the pump only partially immersed.
• Space economy by a top outlet.
• Hermetically sealed motor equipped.
• Motor is dry type submersible induction motor (2poles).

Specification

• Capacity up to 220m3 /h
• Head up to 78meter
• Discharge 100mm (4") to 150mm (6")
• Power:22Kw(30HP) to 30Kw(40 HP)
• Insulation class:F , IP68
• Cable:length 20m
• Water temperature: up to 40℃
• Max.water depth:30m

Application

• Deep-well pre-dewatering or high-head dewatering
• Civil engineering and contruction works
• Mines, quarries, coal ore & slurries.
• Sewage treatment plants
• General pumping purposes.
