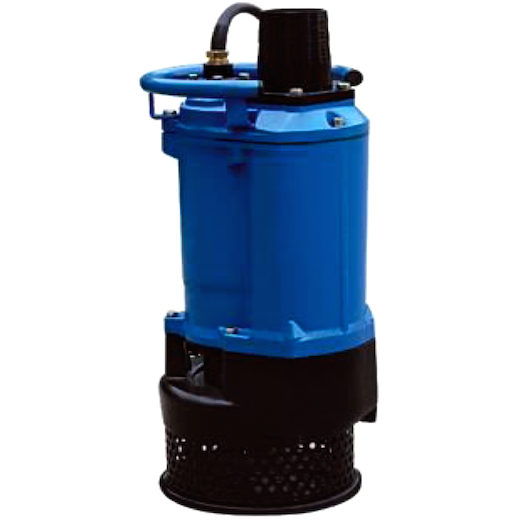

MEUDY DEWATERING SUBMERSIBLE PUMP KBZ45.5 (3 PHASE)

Product Code: KBZ45.5 (3 PHASE)

Availability: Pre Order

Model: KBZ45.5 (3 phase)
KBZ 4" Dewatering Submersible Pump.

Features

The body of motor & pump is made of rigid cast iron for long-lasting durability.
Greatly increased max. submersion depth due to m.seal resistant to high pressure 0.5Mpa)
Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
Discharge 50mm(2") to 150mm(6"), motor 1.5kw(2hp) to 15kw(20hp)
Hermerically sealed motor equipped build-in thermal protection.
Capacity up to 155m3/h. Cable:length 8m.
Water temperature up to 40°C. Max.water depth:50m.

Specifications
