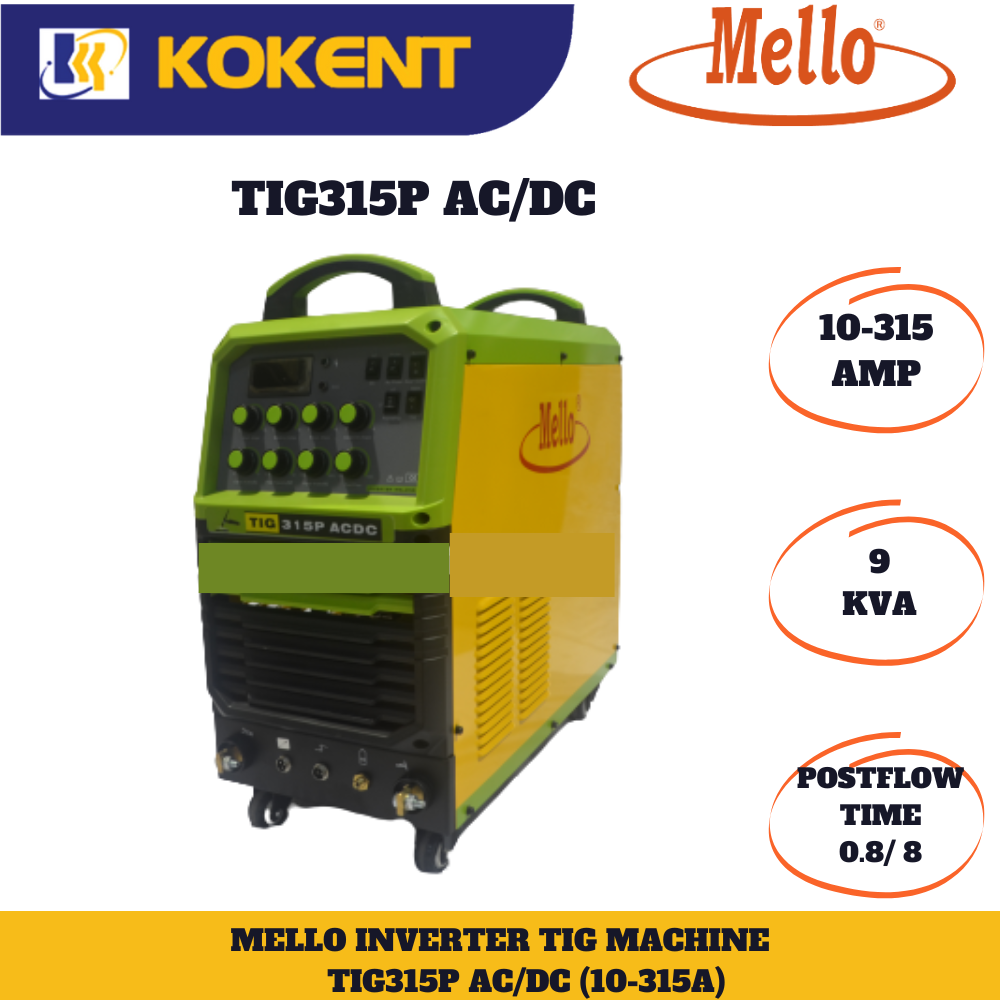

MELLO TIG315P AC/DC(MOS) 1 PHASE SQUARE WAVE PULSE TIG WELDING MACHINE
MELLO TIG315P AC/DC(MOS) 1 PHASE SQUARE WAVE PULSE TIG WELDING MACHINE

MELLO TIG315P AC/DC(MOS) 1 PHASE SQUARE WAVE PULSE TIG WELDING MACHINE

Product Code: TIG315P AC/DC
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:
ITEM \ MODEL  UNIT  TIG 315P AC/DC
Input Power Voltage / Freq. V/Hz AC415V 50/60
Rate Input Power Capacity KVA 9
No-Load Voltage V 45
Output Current Range A 10-315
Duty Cycle (25°C) % 60
Arc-Starting   HF
Efficiency % 85
Power Factor (cos Φ)   0.93
Insulation Class   F
Weight KG 41
Dimension (L x W x H) mm 620 x 370 x 550
Protection Class   IP23
Preflow Time S 0-2
Clean Width % 20-80
Down-Slope Time S 0-10
Postflow Time S 1-10
Remote Control   YES
Base Current A 10-315
Pulse Frequency Hz 0.5-10
Welding Thickness mm 0.8-8
Water Cooler Tank   Optional
Accessories   5M WP-18 TIG Torch, Earth Clamp with 3MX35MM2 Cable, 3M 4X2.5MM2 Power Cable.
