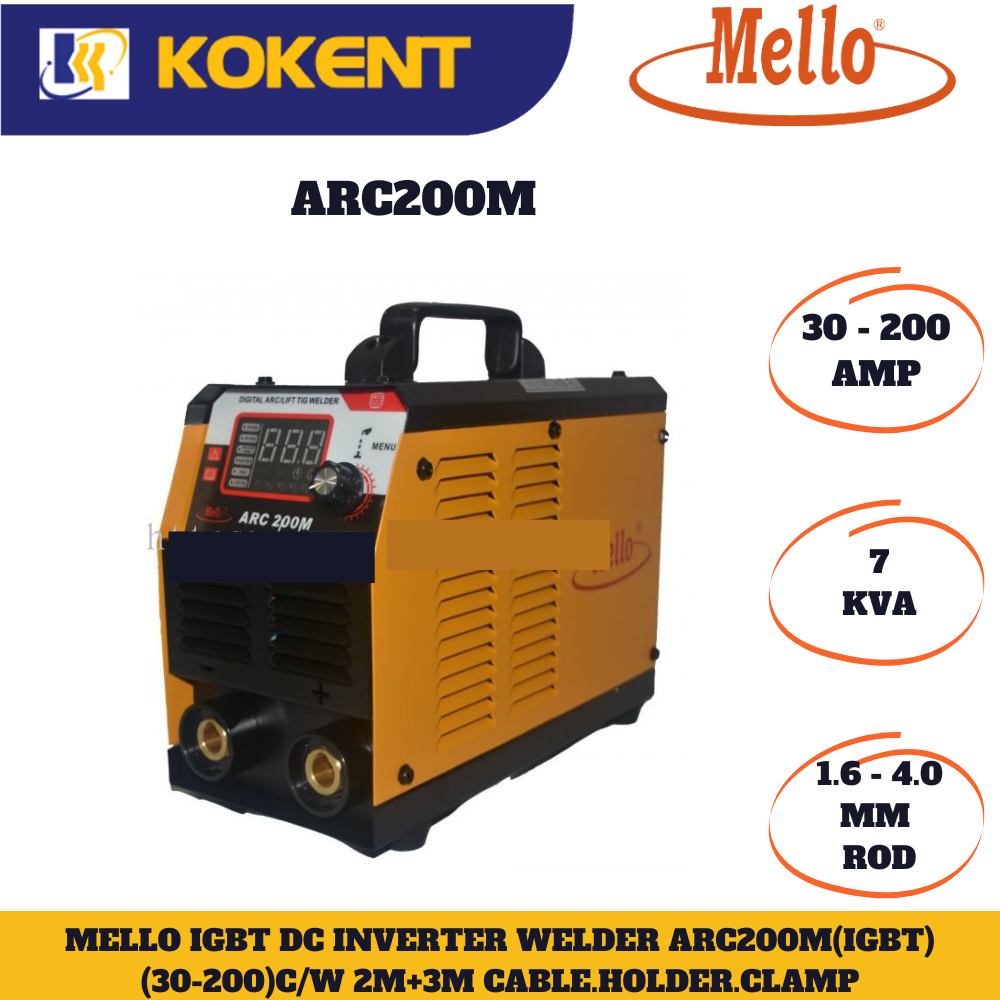

MELLO ARC200M(IGBT) 1 PHASE INVERTER WELDING MACHINE
MELLO ARC200M(IGBT) 1 PHASE INVERTER WELDING MACHINE

MELLO ARC200M(IGBT) 1 PHASE INVERTER WELDING MACHINE

Product Code: ARC200M
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:
ITEM \ MODEL  UNIT  ARC 200M
Input Power Voltage / Freq. V/Hz AC240V 50/60
Rate Input Power Capacity KVA 7
No-Load Voltage V 66
Rated Input Current A 31.8
Rated Output Voltage V 28
Rated Output Current A 30-200
Duty Cycle (25°c) % 60
Efficiency % 85
Power Factor (cos Φ)   0.93
Insulation class   F
Protection class   IP21S
Arc Force   0-100
Diameter of Rod   1.6-4.0
Weight (G.W / N.W) KG 6.9 / 5
Dimension (L x W x H) (CTN) mm 340 x 225 x 260
Accessories   1. Power cable 3M with 13A 3-pin          plug.
2. Front Panel with KDP50 socket.
3. 300A Earth clamp with 3M 25mm²      welding cable & KDP50 plug.
4. 300A Electrode Holder with 3M          25mm² welding cable & KDP50          plug.
