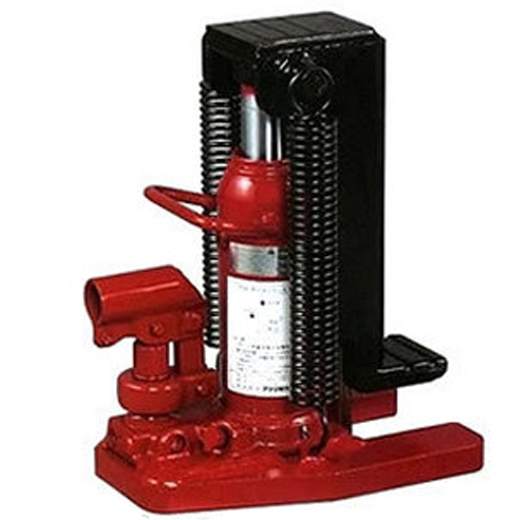

Masada Bottle Toe Jack 20ton(Toe),28ton(Head), 36kg MHC-10RS-2
Masada Bottle Toe Jack 20ton(Toe),28ton(Head), 36kg MHC-10RS-2

Masada Bottle Toe Jack 20ton(Toe),28ton(Head), 36kg MHC-10RS-2

Product Code: MHC-10RS-2 (Made in Japan)
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: MHC-10RS-2 (Made in Japan)
Toe jack with lifting capacity of 5ton on toe, and 10 ton on head.

Price inclusives 6%GST.

Features

  • Ideal jack for lifting loads with a low minimum jacking clearance.
  • Applications include: house moving, machinery installation, and applications at shipyards, bridge building, or plant construction sites.

Specifications

Capacity on Toe 20 ton
Capacity on Head 28 ton
Lowest Position Toe:28mm
Head:325mm
Stroke 145mm
Highest Position Toe:173mm
Head:470mm
Base Size W x L 225mm x 290mm
Nail Size W x L 85mm x 60mm
Weight 19.1kg



Click to enlarge
