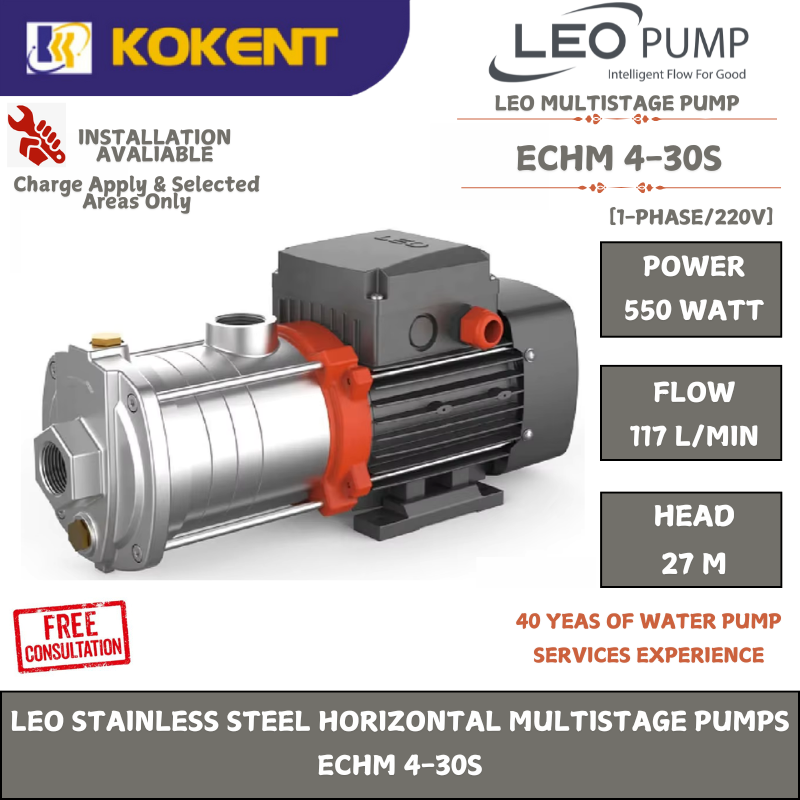

LEO STAINLESS STEEL HORIZONTAL MULTISTAGE PUMPS ECHM 4-30S

SPECIFICATION
Model : ECHM 4-30S
Voltage : 220V
Flow (L/min): 17 – 117
Head (m): 27 – 13
Power (kw / hp): 0.55 / 0.75
Inlet / Outlet: 1¼” X 1”
Dimensions: 420 x 215 x 243 mm
Weight: 11.8 kg

Scope Of Delivery
• 1x Leo Horizontal Multistage Pump ECHM 4-30S

Description

Applications
• Household water supply
• Pipeline pressurization
• Industrial and mining
• Fish farming and poultry raising
• Central air conditioning and heating circulation

Features
• Max liquid temperature +85˚C
• AISI 304 fabricated shaft
• Built in thermal protector
• Insulation class: F
• Protection class: IP44
