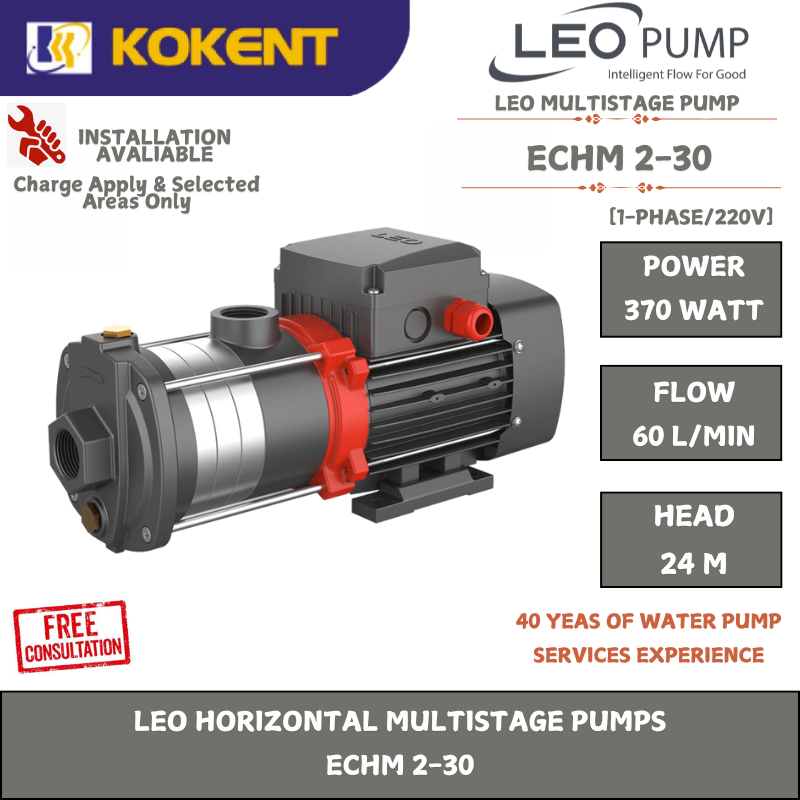

LEO HORIZONTAL MULTISTAGE PUMPS ECHM 2-30

SPECIFICATION
Model : ECHM 2-30 | OLD Model : LCHM 2-30
Voltage : 220V
Flow (L/min): 10 – 60
Head (m): 24 – 12
Power (kw / hp): 0.37 / 0.5
Inlet / Outlet: 1” X 1”
Dimensions: 420 x 215 x 243 mm
Weight: 11.8 kg

Scope Of Delivery
• 1x Leo Horizontal Multistage Pump ECHM 2-30

Description

Applications
• Household water supply
• Pipeline pressurization
• Industrial and mining
• Fish farming and poultry raising
• Central air conditioning and heating circulation

Features
• Max liquid temperature +85˚C
• AISI 304 fabricated shaft
• Built in thermal protector
• Insulation class: F
• Protection class: IP44
