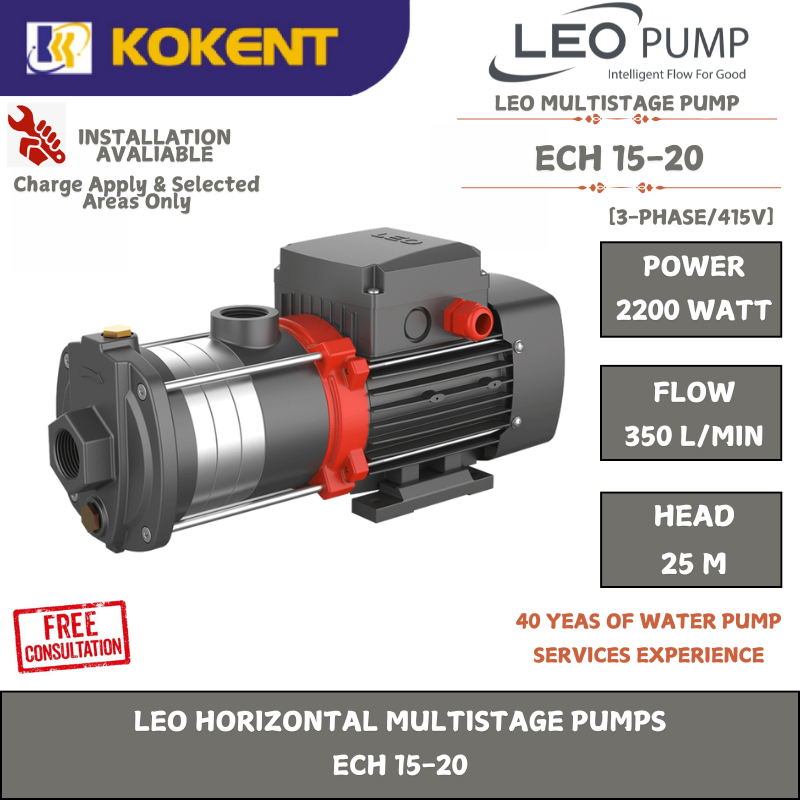

LEO HORIZONTAL MULTISTAGE PUMPS ECH 15-20

SPECIFICATION
Model : ECH 15-20
Voltage : 415V
Flow (L/min): 150 – 350
Head (m): 25.6 – 18.8
Power (kw / hp): 2.2 / 3.0
Inlet / Outlet: 2” X 2”
Dimensions: 420 x 215 x 243 mm
Weight: 11.8 kg

Scope Of Delivery
• 1x Leo Horizontal Multistage Pump ECH 15-20

Description

Applications
• Household water supply
• Pipeline pressurization
• Industrial and mining
• Fish farming and poultry raising
• Central air conditioning and heating circulation

Features
• Max liquid temperature +85˚C
• AISI 304 fabricated shaft
• Built in thermal protector
• Insulation class: F
• Protection class: IP44
