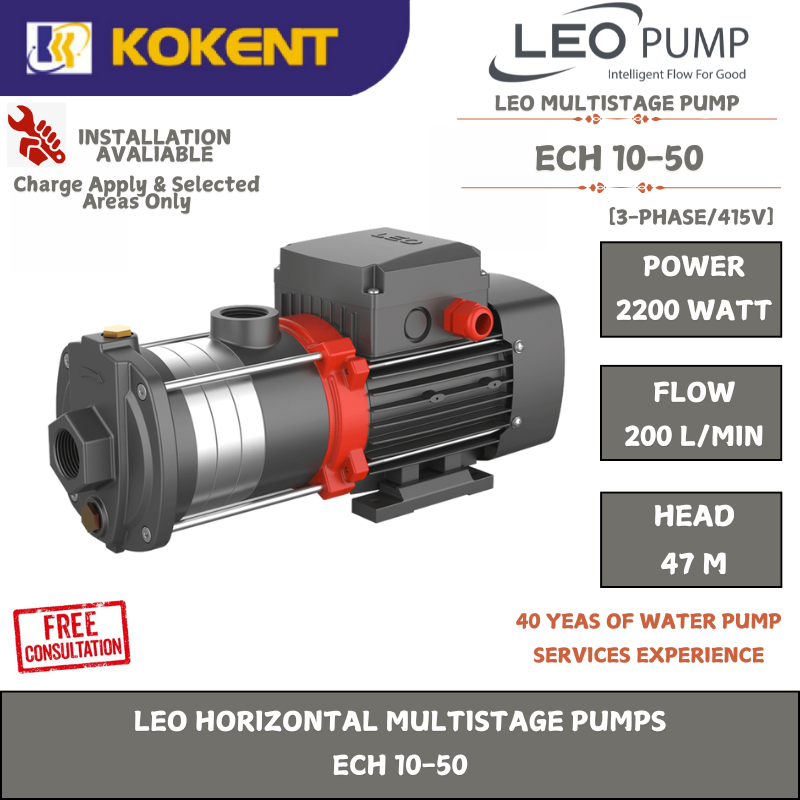

LEO HORIZONTAL MULTISTAGE PUMPS ECH 10-50

SPECIFICATION
Model : ECH10-40
Voltage : 415V
Flow (L/min): 100 – 200
Head (m): 47.8 – 31.1
Power (kw / hp): 2.2 / 3.0
Inlet / Outlet: 1½” X 1¼”
Dimensions: 420 x 215 x 243 mm
Weight: 11.8 kg

Scope Of Delivery
• 1x Leo Horizontal Multistage Pump ECH 10-50

Description

Applications
• Household water supply
• Pipeline pressurization
• Industrial and mining
• Fish farming and poultry raising
• Central air conditioning and heating circulation

Features
• Max liquid temperature +85˚C
• AISI 304 fabricated shaft
• Built in thermal protector
• Insulation class: F
• Protection class: IP44
