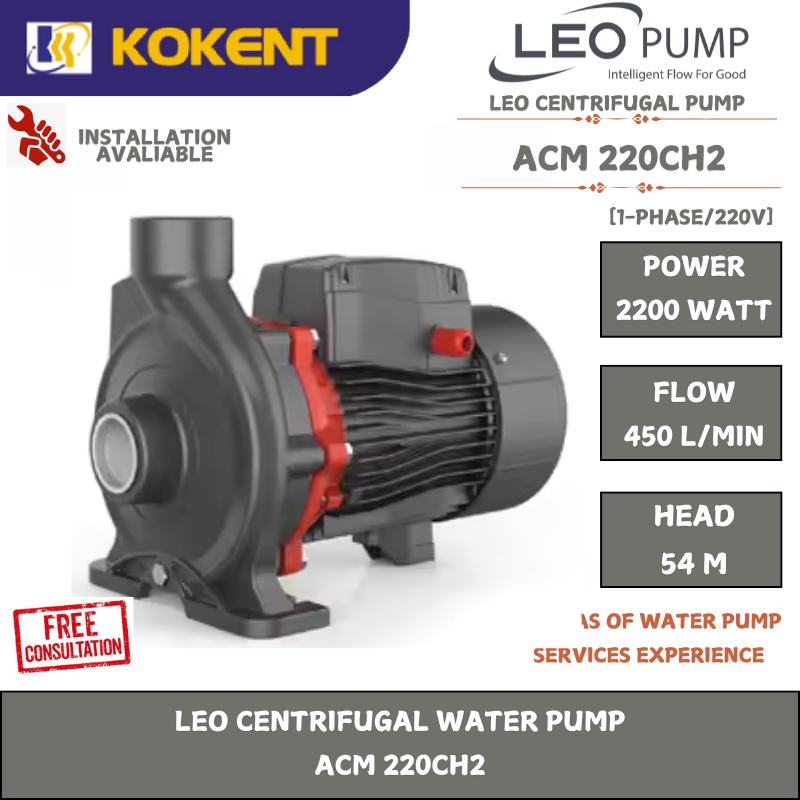

LEO CENTRIFUGAL WATER PUMP ACM 220CH2

SPECIFICATION
Model : ACM 220CH2
Voltage : 220V
Flow (L/min): 100 – 450
Head (m): 54.5 – 28
Max. Suct (m): 8
Power (kw / hp): 2.2 / 3.0
Inlet / Outlet: 2” X 2”
Dimensions: 290 x 185 x 239 mm
Weight: 8.4 kg

Scope Of Delivery
• 1x Leo Centrifugal Water Pump ACM 220CH2

Description

Applications
• Transfer of clean water or other liquids similar to water in physical and chemical properties
• Domestic water supply
• Pressure boosting for high buildings
• Garden and agriculture irrigation
• Industrial use

Features
• Copper winding
• Built-in thermal protector
• Anti-rust treatment for moistened part
• AISI 304 fabricated shaft
• Low voltage operation
• Insulation class: F
• Protection class: IPX4
