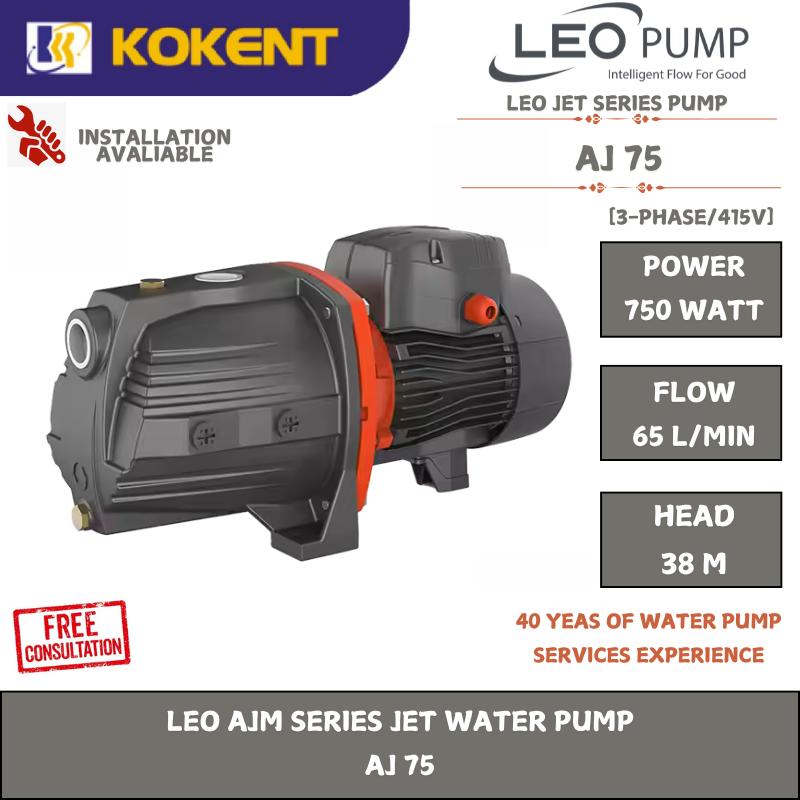

LEO AJM SERIES JET WATER PUMP AJ 75

SPECIFICATION
Model : AJ 75
Voltage : 415V
Flow (L/min): 5 – 65
Head (m): 38 – 23
Max. Suct (m): 9
Power (kw / hp): 0.75 / 1.0
Inlet / Outlet: 1” X 1”
Dimensions: 200 x 180 x 400 mm
Weight: 6.2 kg

Scope Of Delivery
• 1x Leo Jet Pump AJ 75

Description

Applications
• Transfer of clean water or other liquids similar to water in physical and chemical properties
• Lifting water from wells
• Garden irrigation
• Pressure boosting

Features
• Copper winding
• Stainless steel pump body (AJM-S)
• Stainless steel impeller
• Built-in thermal protector
• Anti-rust treatment for moistened parts
• AISI 304 fabricated shaft
• Low voltage operation
• Insulation class: F
• Protection class: IPX4
