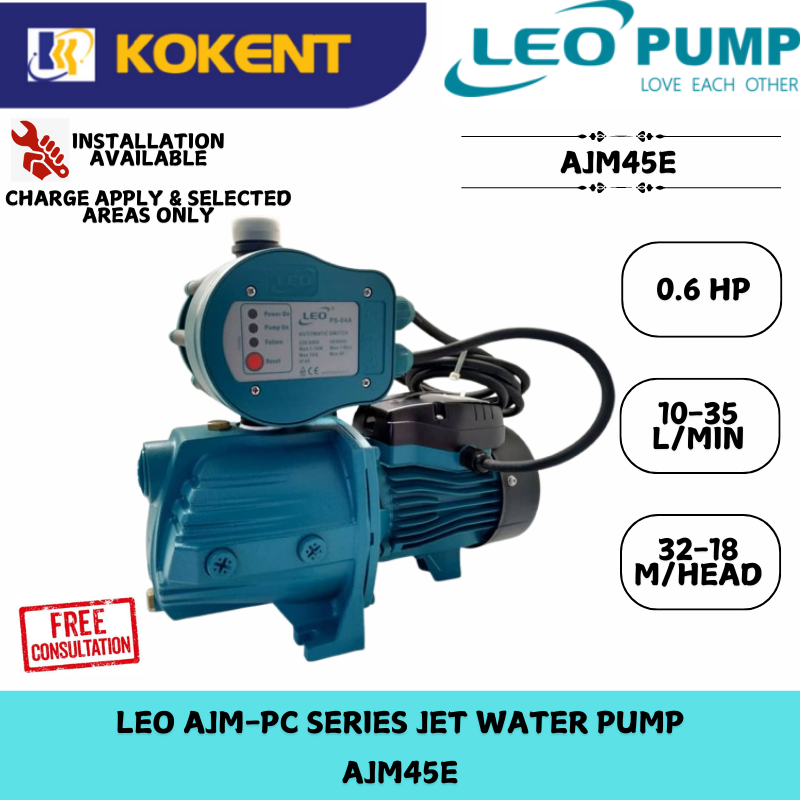

LEO AJM-PC SERIES JET WATER PUMP AJM45E

• Power : 0.6HP/450W
• Voltage : 220V (50Hz)
• Inlet – Outlet : 25mm x 25mm
• Max Flow : 35L/min
• Max Head : 34m
• Max Suction : 9m
• Stainless Steel Impeller
• Motor with Cooper Winding
• Max.liquid temperature :+40C

Size (length*width*height): 390mm x 185mm x 215mm

LEO AJM45 Self-Priming Jet Water Pump

Pump:

• AISI 304 shaft
• Stainless steel impeller
• Cast iron pump body and support under special anti-rust treatment.
• Max. liquid temperature: +40°C
• Max. suction: +9 m

Motor:

• C & U bearing
• Motor with copper winding.
• Built-in thermal protector for single phase motor
• Insulation class: F
• Protection class: IPX4
• Max. ambient temperature: +40°C

Application:

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties.
• Suitable boosting of running water and supporting equipment etc.​
