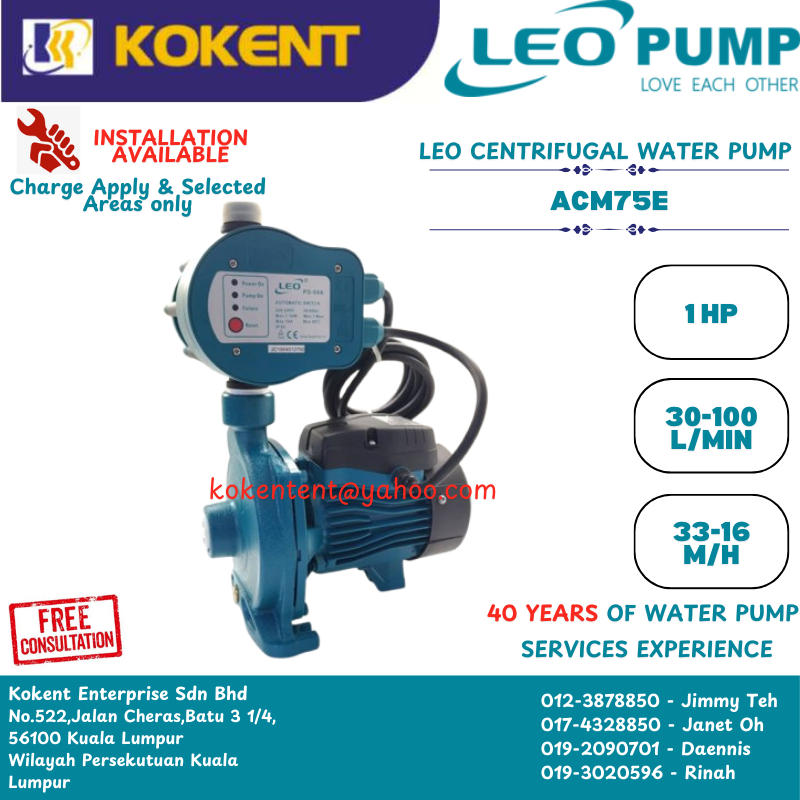

LEO ACM-PC SERIES CENTRIFUGAL WATER PUMP ACM75E
Product Code: ACM75E
Availability: In Stock
- Power Consumption 1HP / 750W
- Power Supply 180V – 220V (50Hz)
- Structure Single Stage Pump
- Inlet – Outlet 1″ (25mm)
- Max Flow 100L/min
- Max Head 36m
- Max Pressure 100m
- Max Suction 8m
- Rotation Speed 2900
- Stainless steel impelller
- AISI 304 shaft
- Max.liquid temperature:+40℃
Size (length*width*height): 333mm x 215mm x 260mm
LEO ACM75 Centrifugal Pump
| Brand | Leo |
| Model | ACM75 |
| Power Consumption | 1HP / 750W |
| Power Supply | 180V – 220V (50Hz) |
| Structure | Single Stage Pump |
| Inlet – Outlet | 1″ (25mm) |
| Max Flow | 100L/min |
| Max Head | 36m |
| Max Pressure | 100m |
| Max Suction | 8m |
| Rotation Speed | 2900 |
| Capacitor | +40°C |
