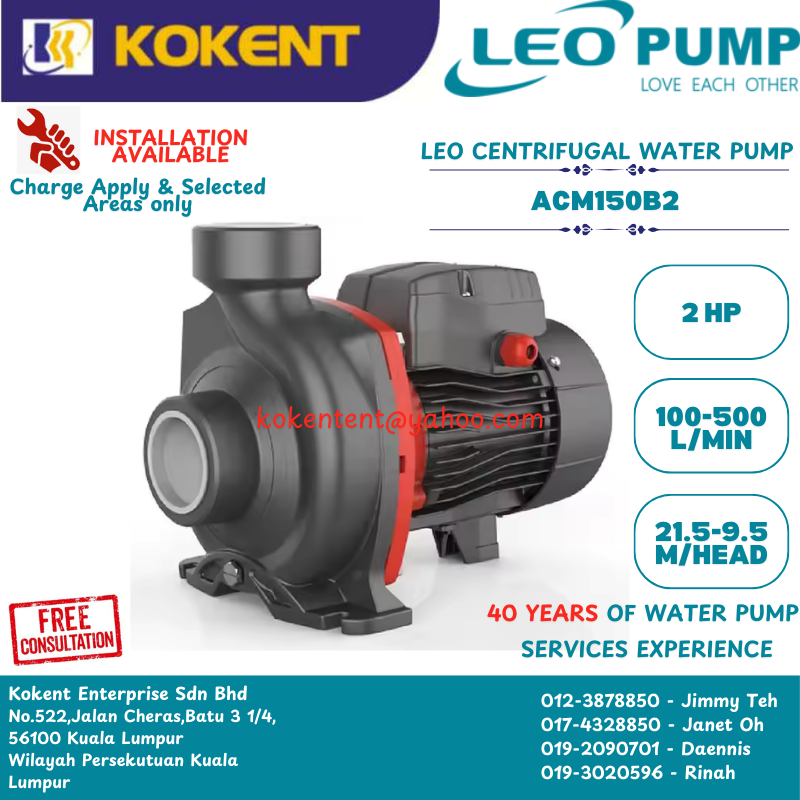

LEO ACM CENTRIFUGAL WATER PUMP ACM150B2

Brand: LEO Pump

• Power : 1500W / 2HP
• Voltage : 220V
• Structure Single Stage Pump
• Inlet – Outlet : 2″(50mm) X 2″(50mm)
• Max Flow : 500 (l/min)
• Head (m) : 9.5-21.5
• Max Suction : 8m
• Stainless steel  impelller
• AISI 304 shaft
• Max.liquid temperature:+40℃

Size (length*width*height): 425mm x 265mm x 310mm

Description

FREE: FACE SHIELD (SOFT)

LEO ACM150 Centrifugal Pump

Water Pump Application:

1.The water pump can be used to transfer clean water or other liquids similar to water in physical and chemical properties.

2. Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.

Water Pump:

• Cast iron  pump body and support under special anti-rust treatment
• Stainless steel  impelller
• AISI 304 shaft
• Max.liquid temperature:+40°C
