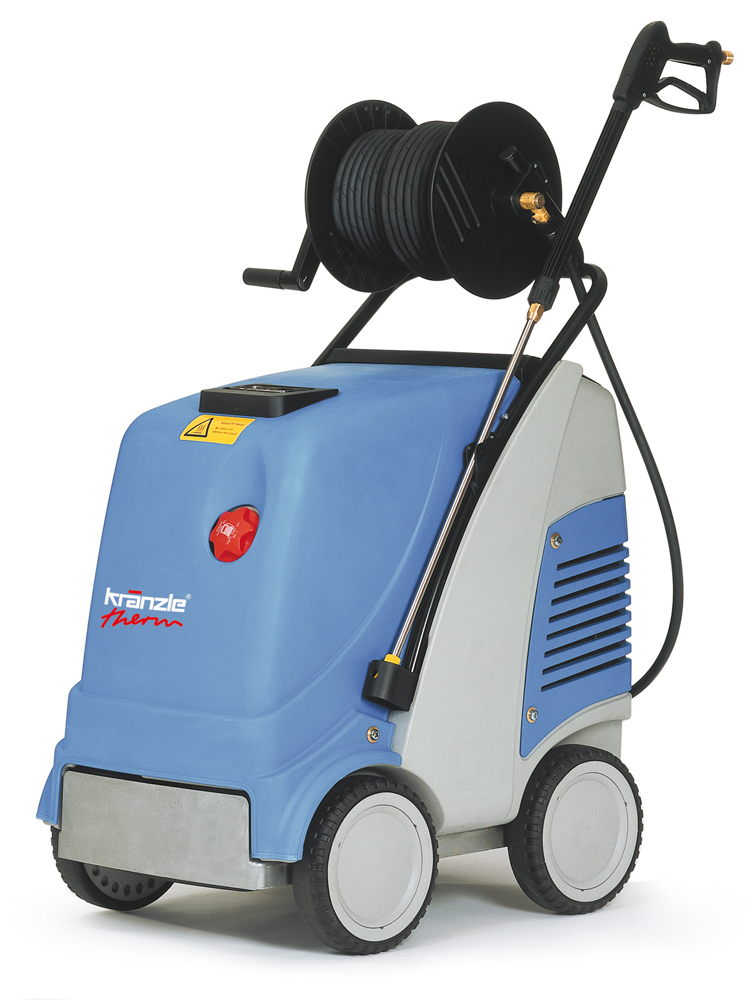

Kranzle H. Pressure Cleaner 130Bar 140°C 3400W 179kg C11/130
Kranzle H. Pressure Cleaner 130Bar 140°C 3400W 179kg C11/130

Kranzle H. Pressure Cleaner 130Bar 140°C 3400W 179kg C11/130

Product Code: C11/130
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: C11/130 (Made in Germany)
The compact Kranzle hot water high-pressure cleaners Therm C.

Price inclusives 6%GST.

Specifications

Operating Pressure  30 - 130 Bar (Continuously adjustable)
Max Admissible Overpressure  145 Bar
Water Output at Nominal Pressure  11L/min OR 660L/hour
Nozzle Size (Flat Jet) 25045
Hot Water Output Temperature 12°C-80°C (inlet 12°C)
Steam Level Max 140°C
Delayed Motor Cut-out Yes
Total-stop Yes
Flow Monitoring Yes
Pre-aeration of combustion chamber  Yes
Optical Flame Monitoring System Yes
Safety Thermostat Triggers at Emission
Temperatures above 230°C                   		 Yes
Burner Stops in Case of Heating Oil Lack Yes
Heating Oil Jet : Oil Pressure 1.25Gpm (10 Bar)
Heating Oil Consumption at
Max Heating Output 		 5.1kg/h (=6.1L/h)
Heating Output 55 kW
Fuel Tank 25 L
Steel-weave High Pressure hose NW8 10 meters
Appliances with hose drum fitted with
Steel Weave high-pressure hose NW8		 15 meters
Connected Load 230V, 15A, 50Hz
Power Input P1: 3.4kW
Power Output P2: 2.3kW
Weight 179kg
Dimensions (w/o Reel) 790mm x 590mm x 980mm



Standard Accessories

  • Integrated trolley
  • 7.5 m power lead
  • Cable reel
  • 10 m steel-weave high-pressure hose; with hose drum 15 m (optional)
  • Total-Stop facility with delayed motor cut-out
  • 4-way safety system with overload protection
  • Continuously adjustable temperature control
  • Continuously adjustable pressure control from outside the machine
  • Integrated steam level
  • Pre-aeration of combustion chamber
  • 25 l fuel tank with content monitoring
  • Brass pump head
  • Dry-run safety
  • Ceramic-coated pump plungers
  • Spray gun with safety cut-out
  • Spray lance with stainless steel pipe
  • Receptacle for spray gun, lance and Dirtkiller
  • Detergent injector with filter
