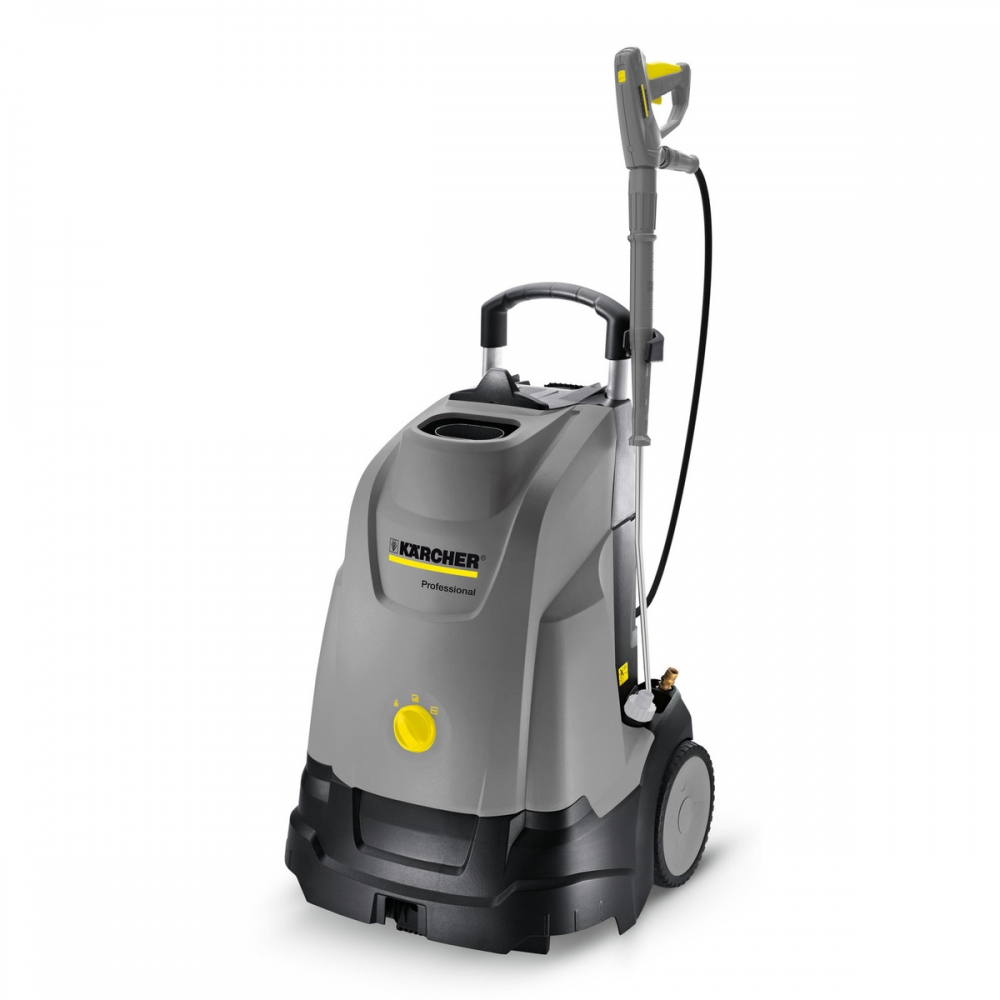

KARCHER HIGH PRESSURE WASHER HDS 5/13 U
HDS 5/13 U: the entry-level model in the class of hot water high-pressure cleaners impresses with its sophisticated and innovative upright design. This type of horizontal machine design results in reduced weight and very compact dimensions. This makes the machine very easy to transport in estate cars and – thanks to the large wheels and push handle – very mobile on uneven surfaces. A highly efficient cleaning performance is guaranteed by the combination of patented nozzle technology, turbo blower and increased pump efficiency. With the EASY!Forcehigh-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. Easy operation and storage options for the hose and spray lance add to the machine's extensive equipment.
FEATURES AND BENEFITS
Innovative upright design
Effortless transport over landings or stairs. Large wheels for unpaved surfaces.
Water fine filter
Efficiently protects high-pressure pump against contamination. Easy to remove from outside.
Compact design
Space-saving storage and transport Spill-proof pump and fuel tank for flat transport. Ideal for small service vehicles
Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings. |
|
SPECIFICATIONS
Technical data
Current type (Ph/V/Hz) | 1 / 230 / 50 |
Flow rate (l/h) | 500 |
Working pressure (bar/MPa) | 125 / 12.5 |
Max. temperature (supply 12°C) (°C) | max. 80 |
Connection load (kW) | 2.6 |
Heating oil or gas consumption, full load (kg/h) | 3.1 |
Fuel tank (l) | 6.5 |
Weight (kg) | 65.7 |
Dimensions (L × W × H) (mm) | 618 x 618 x 994 |
Equipment
- Spray gun, EASY!Force Advanced
- High-pressure hose, 10 m
- Spray lance, 840 mm
- Pressure cut-off
