K33-K44

Product Code: K33-K44

Availability: Pre Order

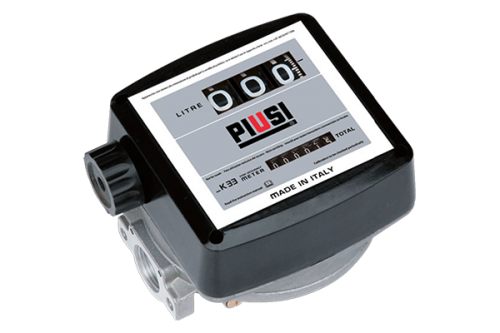

Mechanical meters. Designed to measure the exact quantity of dispensed liquid (fuel or lubricant) for non commercial use. Reliable, economical and easy to install and calibrate on site. alo gravity functional thanks to reduced resistance to flow.

Mod. K33, 3 digit partial totals (max999 litres), 6 digit totals.

Mod. K44, 4 digit partial totals (max 9999 litres), 7 digit totals.

Mod. Pulser:"Open collector" card type, frequency 10 pulses/litres, power supply 6-24 V DC, max 10 mA.

Description

Product Detail

Weight and Packaging

Code	Weight		Packaging		N.boxes/Europallet
Code	KG	Lbs	mm	pcs/box	Air	Ship
000550000	0,6	1,3	180x180x170	1	192	240
000551000	0,6	1,3	180x180x170	1	192	240
000552000	0,6	1,3	180x180x170	1	192	240
000553000	0,6	1,3	180x180x170	1	192	240
000560000	0,6	1,3	180x180x170	1	192	240
000561000	0,6	1,3	180x180x170	1	192	240
000562000	0,6	1,3	180x180x170	1	192	240
000563000	0,6	1,3	180x180x170	1	192	240
000700000	0,6	1,3	180x180x170	1	192	240
000553130	0,6	1,3	180x180x170	1	192	240
000710000	0,6	1,3	180x180x170	1	192	240
000563080	0,6	1,3	180x180x170	1	192	240
00056500A	0,6	1,3	180x180x170	1	192	240

Technical Data

Code D	000550000	000551000	000552000	000553000	000560000	000561000	000562000	000563000	000700000	000553130	000710000	000563080	00056500A
Code O	000550160	000551160	000557000	000558000	000560160	000561020	000562020	000563020	-	-	-	-	-
Description	K33 Ver.A	K33 Ver.B	K33 Ver.C	K33 Ver.D	K44 Ver.A	K44 Ver.B	K44 Ver.C	K44 Ver.D	K33 Ver.A GAL/NPT	K33 Ver.D GAL/NPT	K44 Ver.A GAL/NPT	K44 Ver.D GAL/NPT	K44 / Pulser
Fluids (Direction)	←	↑	↓	→	←	↑	↓	→	←	→	←	→	→
Flow-rate (I/min)	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120
Flow-rate (gpm)	5-32	5-32	5-32	5-32	5-32	5-32	5-32	5-32	5-32	5-32	5-32	5-32	5-32
Pressure (bar)	10	10	10	10	10	10	10	10	10	10	10	10	10
Pressure (psi)	142	142	142	142	142	142	142	142	142	142	142	142	142
Pulser (p/I (p/gal))	-	-	-	-	-	-	-	-	-	-	-	-	10 (38)
Inlet Outlet	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" BSP	1" NPT	1" NPT	1" NPT	1" NPT	1" BSP
