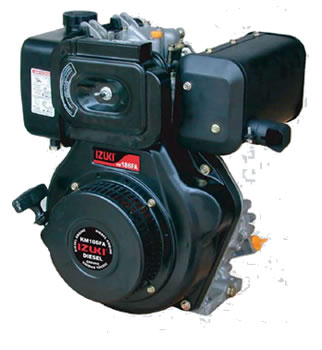

IZUKI DIESEL ENGINE IZ186FA

AIR-COOLED DIESEL

* Its many special merits now include IZUKI'S latest gentle gears

  The total fie expertise only a complete diesel maker can provide

  Izuki first develop the miniaturized fuel injection system,the world's smallest.We have since raised it to a level

   of efficiency that ensures you maximum power from every drop of diesel.Its extraordinarily low fuel

   consumption is a result of this super-precise FIE and its direct injection system-the first ever to go into

   this type of engine.

   FAST,EFFORTLESS STSRTS FROM A ONE-PULL RECOIL STARTER

  A short and smooth pull of the toggle kicks off the engine,as simple as a gasoline auto-return

   decompressor and IZUKI'S own efficient combustion system.Electric starting is also a useful option.

Technical Specifications

Model                                        IZ186FA

Engine Type                                 Single Cylinder,4-stroke,Vertical,Diesel Engine

Combustion Chamber Type                  Direct Injection

Bore X Stroke (mm(in)                      86(3.39) x 72(2.83)

Displacement (cm3(cu-in)                   418(25.51)

Compression ratio                           19.1

Rated power (KW (Hp) rpm)                5.7(7.8)3000

Cooling System                              Forced Air-Cooled

Starting System                            Recoil starter or Electric starter

Power output method                       Crankshaft or camshaft

lube oil capacity (L (us-Gal)                1.65(0.44)

Fuel tank capacity (L(us-Gal)               5.5(1.45)

Fuel consumption (g(ml)kWh)                3000rpm:275(376)  3600rpm:281.5(385)

Rotation direction (view from the wheel)   Clockwise

Dry weight (kg/lbs)                         Recoil starter 48(106) electric starter 53(117)

Overall dimension (L x W x H) mm        420 x 440 x 495
