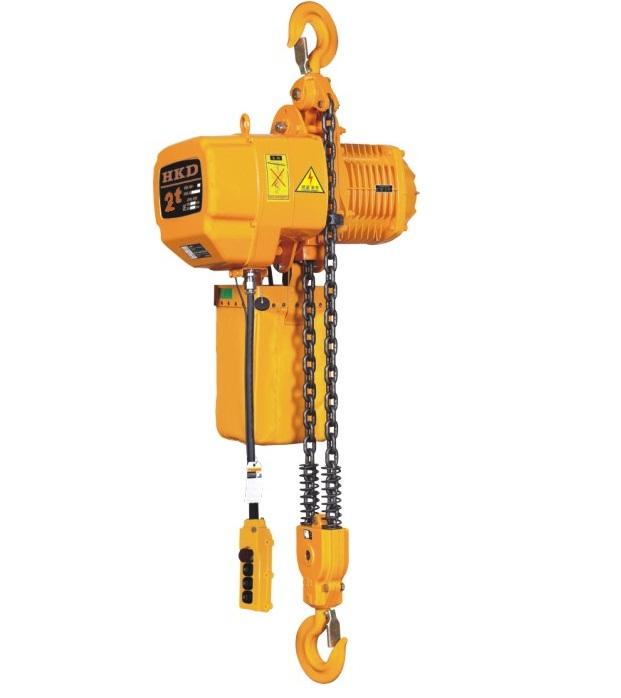

HKD Chain Hoist 7.5tx5m 3Ø 1.8&0.5/min 3.0kW 213kg HKD07503SD
Product Code: HKD07503SD (Made in Taiwan)
Availability: Pre Order
Model: HKD07503SD (Made in Taiwan)
7.5ton x 5m electrical chain hoist with 3 phase, 2 speed motor.
Price inclusives 6%GST.
**24 months warranty on motor.
**Original Japan Chain.
**Waterproof Pendant Control IP65.
Features
- Unique design permits the hoist to be hooked with minimum consumption of head room.
- Each hoist is extensively tested before delivery.
a) Dynamic load test using 125% of ites rated capacity.
b) Overload voltage test.
c) Reduced voltage test.
d) Operation test. - Features of Electrical Motor
a) Class F insulation : Resistance of up to 150°C motor winding temperature.
b) Aluminium Motor Housing : Light weight and provides good heat dissipation. - Motor Brake : Instant motor brakes as soon as the electrical power is cut off.
- Weight Limit Switch
- 48V Transformer Device: Use to prohibit unexpected condition caused by electric leakage and guarantees the safe use while raining.
- Link Chain: Japan-made FEC Grade 80 super alloy steel.
Specifications
| Voltage | 3 Phase, 415V, 50Hz |
| Lifting Capacity | 7.5 tons |
| Lifting Height | 5 meters |
| Lifting Speed | 1.8 & 0.6 (m/min) |
| Hoisting Motor | 3.0 & 1.0 kW |
| Load Chain | Ø11.2mm |
| Chain Fall | 3 |
| Duty Rating | 45% |
| Weight | 213kg |
Accessories Included
- Chain bag
- Control cable 3meters
- Push-button switch
