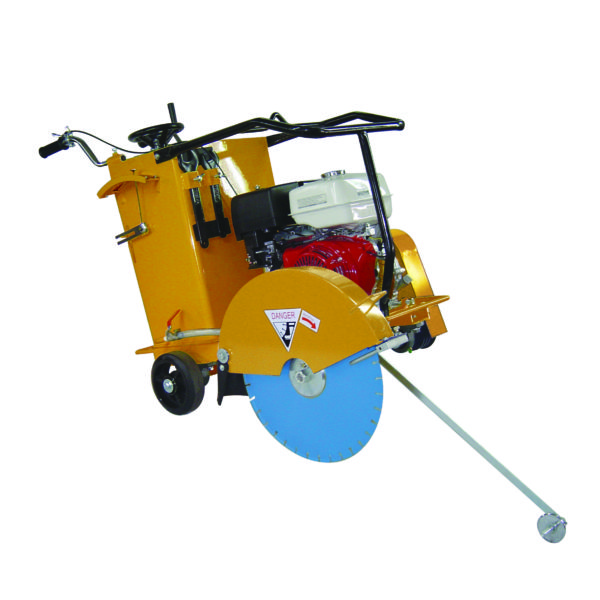

HISAKI CONCRETE CUTTER MC500
Product Code: HISAKI CONCRETE CUTTER MC500
Availability: Pre Order
SPECIFICATIONS
| Model | MC500 |
| Capacity Depth (mm) | 100 ~ 170 |
| Blade Size (mm) | 406 ~ 508 |
| Arbor Size (mm) | 27 |
| Blade Rotation (rpm) | 2500 ~ 3600 |
| Power (hp) | 10 ~ 13, Gasoline Engine / Diesel Engine |
| Weight (kg) | 146 |
FEATURES
- The series comprises from MC351 plastic tank cutter to YRC20 steel tank cutter, providing a wide range of products to meet customer needs.
- Built in tank and water sprinkler to disperse heat from the cutting blade during operation to prolong diamond blade usage.
- Adjustable handle from ergonomic design and for easy storage.
- Rigid cutter frame and precise blade shaft alignment to ensure perpendicular input cut angle, resist warping and vibration to prolong diamond blade usage.
- Complete with bearing lock and throttle leveler.
- The MC660 cutter is designed with self propel system for consistent moving speed.
- Able to fit 660mm (26”) diamond blade with a maximum cutting depth of 280mm (11”).
- Protection guard with built-in lifting hook protects against the engine from accidental job-site damage.
- Heavy duty rubber wheels made from natural rubber limits body vibration towards cutting surface to prolong diamond blade usage.
Note:
- Various types of blade are available!
- Custom made machine to couple with Diesel engine is also available.
