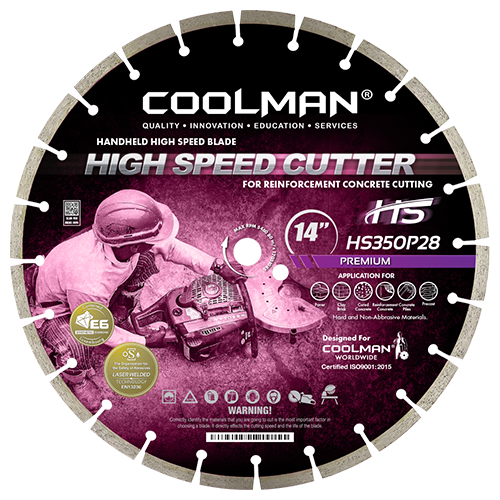

HS series high speed cutting blade apply with top synthetic Diamond Brand from American, E6. E6 supermaterials delivery extreme performance in sawing and cutting due to its extreme hardness such as Cured Concrete. It designed to have excellent temperature management system, so the use of coolant is optional. Laser Welded Technology ensuring your safety is our main priority. A strong grip between the core and segment is definitely needed when cutting.
Additional information
| BOND DESIGN |
Segmented |
|---|---|
| BORE DIAMETER |
20mm / 25.4mm |
| CHARACTERIZE |
Fast-Cut, More sharp, Stability |
| CUT DEPTH |
4.75" / 120mm |
| APPLICATION MATERIAL |
Clay Brick, Concrete Piles, Cured Concrete, Paver, Precast, Reinforcement Concrete |
| DIAMETER |
14" / 350mm |
| EQUIPMENT |
Handheld Power Cutter, Masonry Saw |
| GRADE |
Premium |
| OPERATING MAX. SPEED |
5,400 RPM |
| OPERATING MIN. SPEED |
3,200 RPM |
| SEGMENT HEIGHT |
10mm |
| SEGMENT WIDTH |
2.8mm |
| USAGE |
Dry Cut, Wet Cut |
| WELDING TECHNOLOGY |
Laser Welded |
