Product Code: HS 230P
Availability: Pre Order
Loading ...
Share:

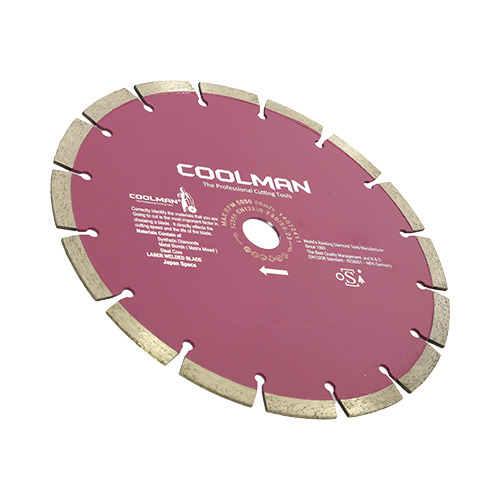

HS series high speed cutting blade apply with top synthetic Diamond Brand from American, E6. E6 supermaterials delivery extreme performance in sawing and cutting due to its extreme hardness such as Cured Concrete. It designed to have excellent temperature management system, so the use of coolant is optional. Laser Welded Technology ensuring your safety is our main priority. A strong grip between the core and segment is definitely needed when cutting.

Additional information

BOND DESIGN

Segmented

BORE DIAMETER

22.23mm / 25.4mm

CHARACTERIZE

Fast-Cut, More sharp, Stability

CUT DEPTH

3.5" / 89mm

APPLICATION MATERIAL

Clay Brick, Concrete Piles, Cured Concrete, Paver, Precast, Reinforcement Concrete

DIAMETER

9" / 230mm

EQUIPMENT

Angle Grinder

GRADE

Premium

OPERATING MAX. SPEED

7,575 RPM

OPERATING MIN. SPEED

4,050 RPM

SEGMENT HEIGHT

10mm

SEGMENT WIDTH

2.6mm

USAGE

Dry Cut, Wet Cut

WELDING TECHNOLOGY

Laser Welded
