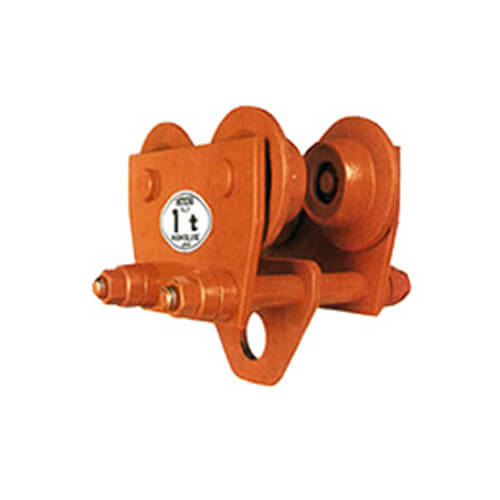

Plain Trolley PT5

Features:

  1. Besides its use lowering the chain hoist, the PT-5 can be used as a stand-alone trolley. The plain trolley can be easily pushed along the rails by hand.
  2. Smooth running: The wheel for each load uses ball bearings that reduce running resistance and ensure freedom from maintenance.
  • Trolley width can be adjusted to one of three different sizes by changing the collar.
  • The wheels are made so that they can run along either I-beams or H-beams

PT5005

MODEL PT5005
RATED LOAD 0.5t
TROLLEY RAIL
(I-BEAM)
A × B × T1 × T2		 125×75×5.5×9.5
180×100×6×10
250×125×7.5×12.5
MIN CURVE RADIUM 800mm
NET WEIGHT 6kg

PT5010

MODEL PT5010
RATED LOAD 1t
TROLLEY RAIL
(I-BEAM)
A × B × T1 × T2		 150×75×5.5×9.5
180×100×6×10
250×125×7.5×12.5
MIN CURVE RADIUM 1000mm
NET WEIGHT 8kg

PT5015

MODEL PT5015
RATED LOAD 1.6t
TROLLEY RAIL
(I-BEAM)
A × B × T1 × T2		 150×75×5.5×9.5
180×100×6×10
250×125×7.5×12.5
MIN CURVE RADIUM 1100mm
NET WEIGHT 11kg

PT5020

MODEL PT5015
RATED LOAD 2t
TROLLEY RAIL
(I-BEAM)
A × B × T1 × T2		 200×100×7×10
250×125×7.5×12.5
300×150×8×13
MIN CURVE RADIUM 1200mm
NET WEIGHT 17kg

PT5030

MODEL PT5015
RATED LOAD 3.2t
TROLLEY RAIL
(I-BEAM)
A × B × T1 × T2		 200×100×7×10
250×125×10×19
300×150×11.5×22
MIN CURVE RADIUM 1500mm
NET WEIGHT 26kg

PT5050

MODEL PT5015
RATED LOAD5 t
TROLLEY RAIL
(I-BEAM)
A × B × T1 × T2		 250×125×10×19
300×150×11.5×22
450×175×11×20
MIN CURVE RADIUM 1500mm
NET WEIGHT 45kg
