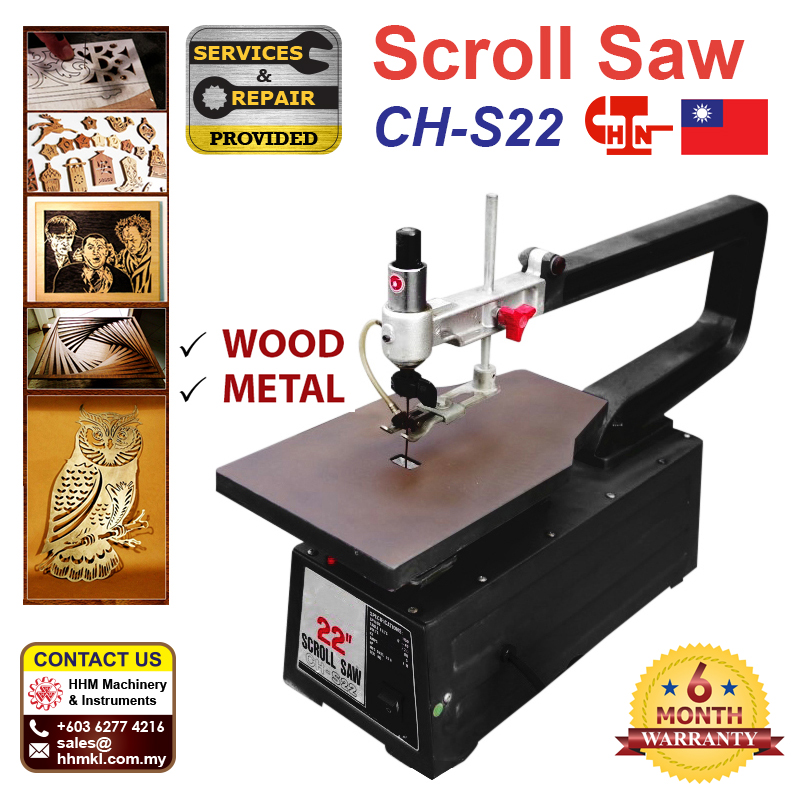

Scroll Saw CH-S22
Features:
1. This scoll saw has a 22 throat capacity and has a large surface area for holding workpiece
2. Fitted with air pump to keep the dust away from the cutting area
Technical Specification:
MODEL |
CH-S22 |
Max. Depth of Cut |
Wood: 40 mm, Metal: 10 mm |
Throat Capacity |
560 mm |
Length of Stroke |
20 mm |
Speeds |
950 rpm (50 Hz), 1150 rpm (60 Hz) |
Size of Table |
200 x 350 mm |
Table Tilts |
45° (L) ~ 45° (R) |
Power |
1/6 HP, 124W, 6P, single phase |
Net Weight |
22 kg |
Gross Weight |
23 kg |
CUFT |
3.38’ |
Machine Dimension |
761 x 48 x 261 mm |
