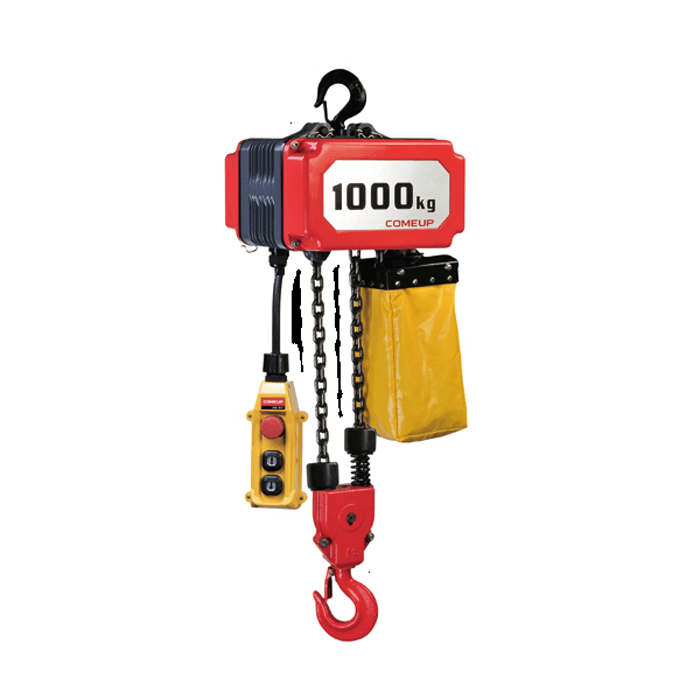

HHM HOIST CK-1000
Product Code: CK-1000
Availability: In Stock
RM0.00
Overview
- Permanent magnetic motor features constant output and low noise level.
- Lightweight and compact designs are ideal for easy installation.
- Dual brakes for double mechanical ratchet pawls and a motor dynamic brake provide slip free operation.
- Safety slipping clutch prevents hook becoming trapped into the hoist in the “up” direction
- Power cutoff switch prevent the overloading of the hoist
- Tough aluminum die cast housing provides massive structural durability.
- Can operate on standard domestic power supply and equip with industrial plug
- A switch w/emergency stop comes as standard
- A 360° bottom hook fitted with a self-locking latch has a bearing is capable of swiveling with the safe working load applied
- Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2004/108/EC, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASTM/ANSI B30.7
Standard accessories
- Load chain Grade 80
- Remote control w/emergency stop w/1.25 mm2 x 6C x 3 m cord
- Industrial plug w/1.5 mm2 x 3C x 3 m
- Hook block
- Hook suspension
- Chain bag
- Power cutoff switch
Technical Spec
| MODEL | CK-1000 | |
|---|---|---|
| DUTY CYCLE | 25% ED at 63% of rated load | |
| DRIVE GROUP | FEM: 9,511 1Bm, ISO: 4301-1 M3 | |
| VOLTAGE | 1000 – 120V, 200 – 240V AC, Single phase | |
| LIFTING CAPACITY | 1000kg | |
| LIFTING HEIGHT | 3m | 6m |
| TYPE OF FALL | Double | |
| MOTOR OUTPUT | 100 – 120V / 750W, 9.5A permanent magnetic 200 – 240V / 750W, 4.5A permanent magnetic |
|
| LINE SPEED | 3.2m/min | |
| BRAKE | Dual brakes of double mecanical ratchet pawls and motor dynamic brake | |
| GEAR RATIO | 70.2:1 | |
| LOAD CHAIN | Grade 80– Links 6.3 mm dia. x 19 mm long | |
| HOIST WEIGHT | 19.3kg | |
| GROSS WEIGHT | 32kg | |
| BOX DIMENSION | 380 × 410 × 345mm | |
