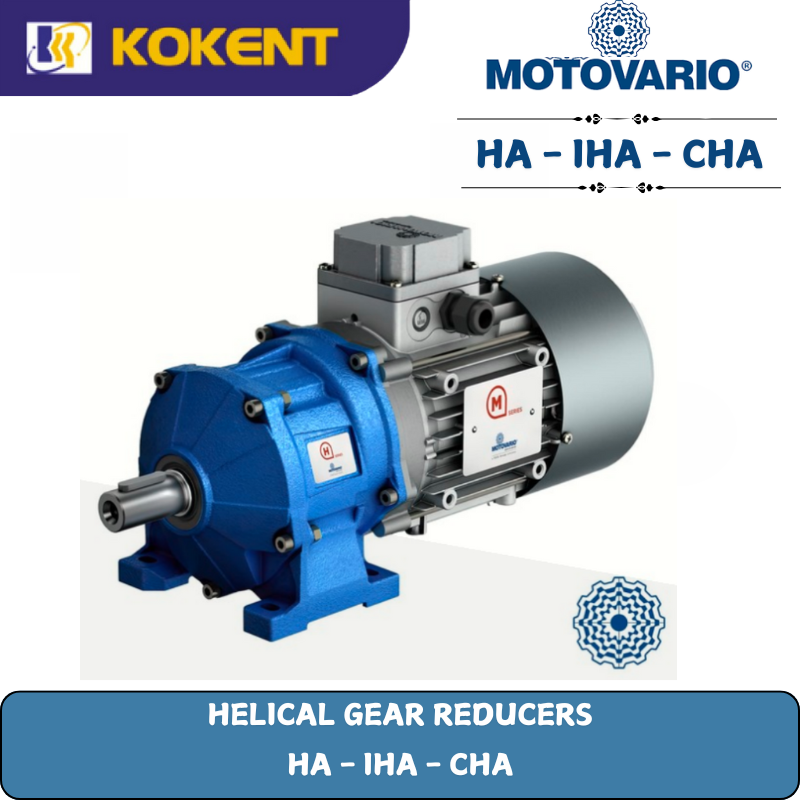

Designed to offer maximum reliability even in the harshest operating conditions, the HA product series guarantees complete versatility and is suitable for applications that require high radial loads.
The H-series includes a large number of extremely versatile models, in cast iron (sizes 030 to 140) or aluminium (sizes A30 to A60) casing.
Certifications Available: ATEX 2GD/3GD
Characteristics
Sizes: A30-A40-A50-A60
Available versions: HA - fitted for motor coupling, IHA - with input shaft, CHA - with compact motor
Casing with feet, flange F or universal U
Power up to 5,5 kW
Gears hardened and tempered with shaved or ground profile
Gearing with 1, 2 and 3 reduction stages
Reduction ratios between 1,33 and 353,98
Torque max 500 Nm and admissible radial loads max 8.000 N
Cases in die-cast aluminium alloy
Load capacity calculated to ISO 6336 and verified according to AGMA 2001
