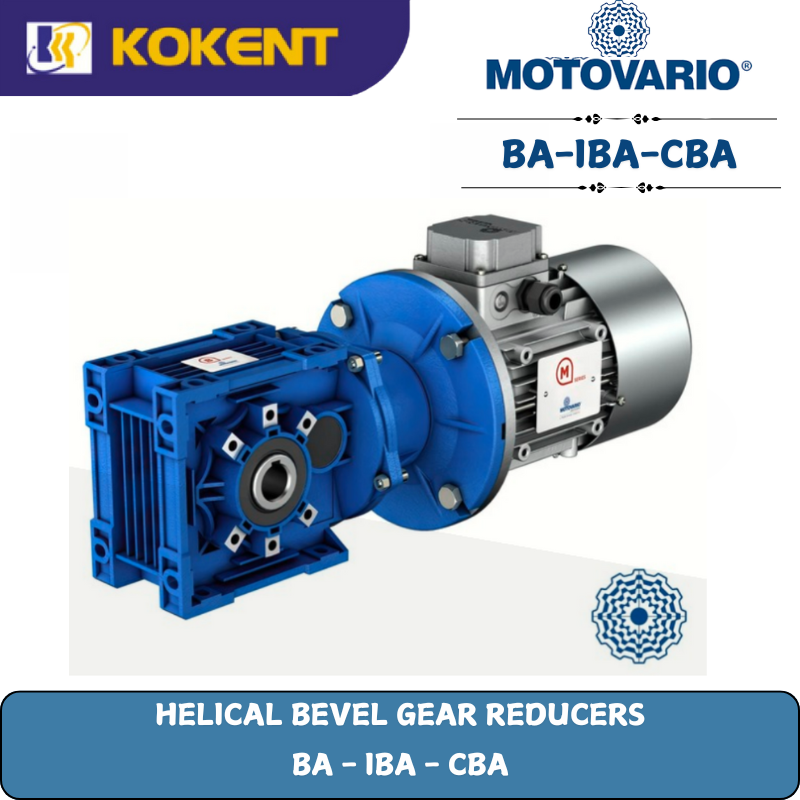

Helical bevel gear reducers

BA - IBA - CBA

The technological content of BA-Series gear reducers allows for an extraordinary performance/lifespan ratio. These highly versatile gear units are successfully used in a vast number of industrial and civil applications. BA-Series units offer excellent value for money and output torque/weight ratio, especially considering that they need very limited servicing.

Available in aluminium from size A40 to A70.

Certifications Available: ATEX 3GD

Characteristics

• Sizes: A40-A50-A70
• Available versions: BA - fitted for motor coupling, IBA - with input shaft, CBA - with compact motor
• Universal casing
• Power up to 5,5 Kw
• Gears hardened and tempered with shaved or ground profile
• Gearing with  2 and 3 reduction stages

• Hypoid bevel gears for size A40 and A50, gleason bevel gear pairs for size A70, all with run-in profile

• Reduction ratios between 7,62 and 442,76
• Torque max 450 Nm and admissible radial loads max 10.000 N
• Casing in die-cast aluminium alloy

• Load capacity calculated and verified according to ISO 6336 and AGMA 2001

• Painted with RAL 5010 blue epoxy-polyester powder

• Accessories: torque arm, output flange, output shaft, shrink disk, viton oil seals
