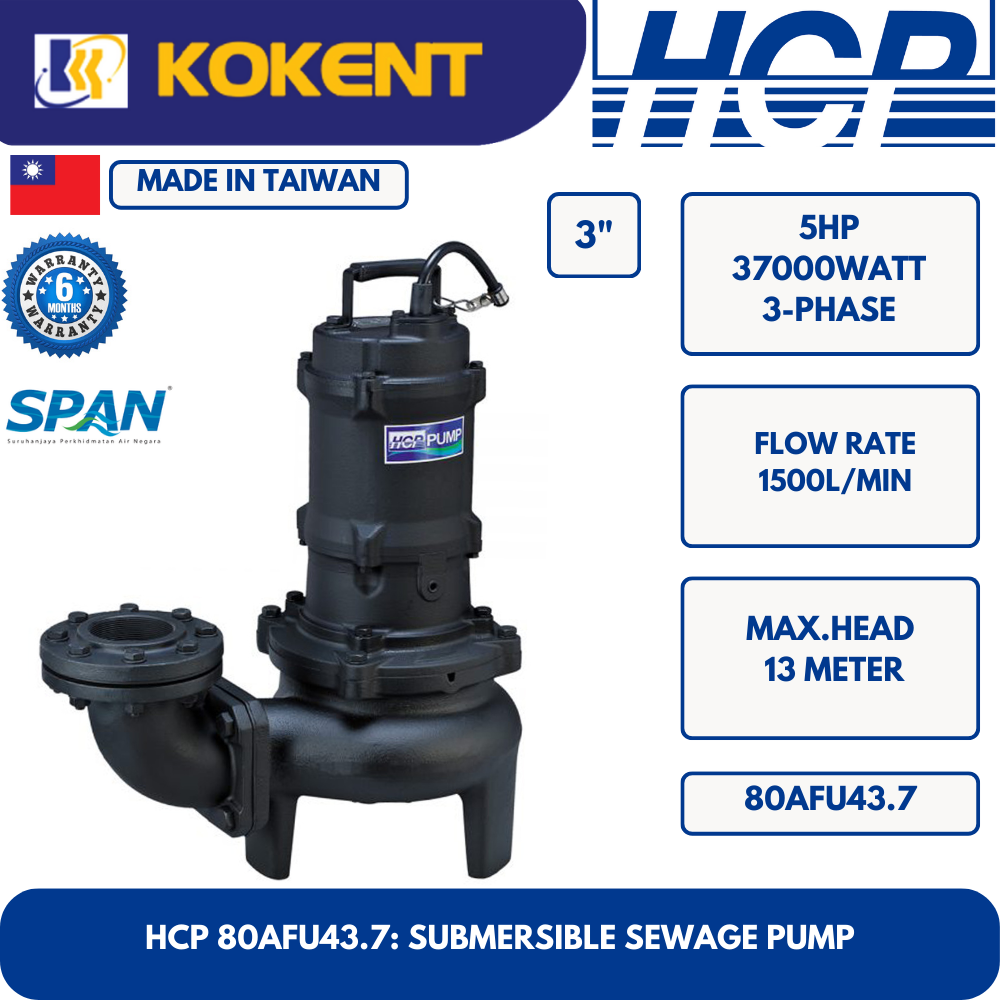

HCP SUBMERSIBLE SEWAGE WATER PUMP 80AFU43.7

HCP SUBMERSIBLE SEWAGE WATER PUMP 80AFU43.7
HCP SUBMERSIBLE SEWAGE WATER PUMP 80AFU43.7

HCP SUBMERSIBLE SEWAGE WATER PUMP 80AFU43.7

Product Code: 80AFU43.7
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: 80AFU43.7

HCP 80AFU43.7 (made in Taiwan) is a submersible pump for sewage water.

  • 3 phase

Features

  • International standard design : cable, auto-cut, dry-motor, silicon carbide mechanical seal, high grade cast iron offering highest quality and performance.
  • P/U/E multiple impeller designs to handle sewage solids and/or fibrous substances.
  • Superior abrasion resistant mechanical seal manufactured with silicon carbide to ensure the best seal effect.
  • Oil lip seal mounted outside of seal chamber stops solids gathering around seal faces.
  • Full range offering low to high head and flow capabilities, with compact and easy installation. Also, available with Guide Rail System, which allows automatic remote connection and disconnection without entering the pit.

Applications

  • Drainage of waste water from the attenuation tank, purifying tank and sewage tank in water treatment plant.
  • Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
  • Sewage management, accumulated water, septic tank, stock farm.
  • Pumping sewage from single and multifamily dwellings.
  • Pumping sewage from hotels, restaurants, schools and public buildings.

Specifications

Power 5 HP (3700 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 10 / 13 meters
Efficient / Maximum Flow Rate 600 / 1500 L/min
Solid Passage 76mm
Weight 65 kg
