Model: 80AFP27.5

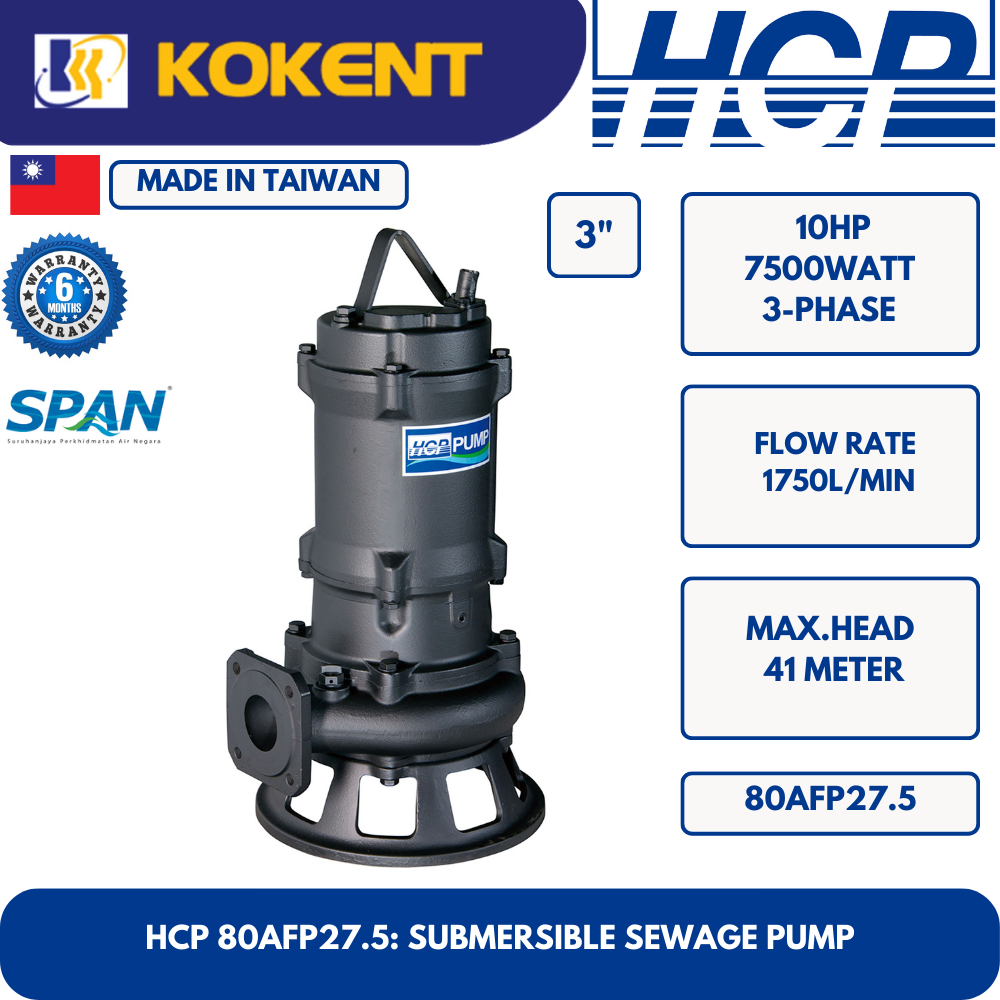

HCP 80AFP27.5 (made in Taiwan) is a submersible pump for sewage water.

  • 3 phase

Features

  • International standard design : cable, auto-cut, dry-motor, silicon carbide mechanical seal, high grade cast iron offering highest quality and performance.
  • P/U/E multiple impeller designs to handle sewage solids and/or fibrous substances.
  • Superior abrasion resistant mechanical seal manufactured with silicon carbide to ensure the best seal effect.
  • Oil lip seal mounted outside of seal chamber stops solids gathering around seal faces.
  • Full range offering low to high head and flow capabilities, with compact and easy installation.
  • Available with Guide Rail System, which allows automatic remote connection and disconnection without entering the pit.

Applications

  • Drainage of waste water from the attenuation tank, purifying tank and sewage tank in water treatment plant.
  • Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
  • Sewage management, accumulated water, septic tank, stock farm.

Specifications

Power 10 HP (7500 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 34 / 41.5 meters
Efficient / Maximum Flow Rate 600 / 1750 L/min
Solid Passage 30mm
Weight 81 kg
