Product Code: 100AFP43.7
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: 100AFP43.7

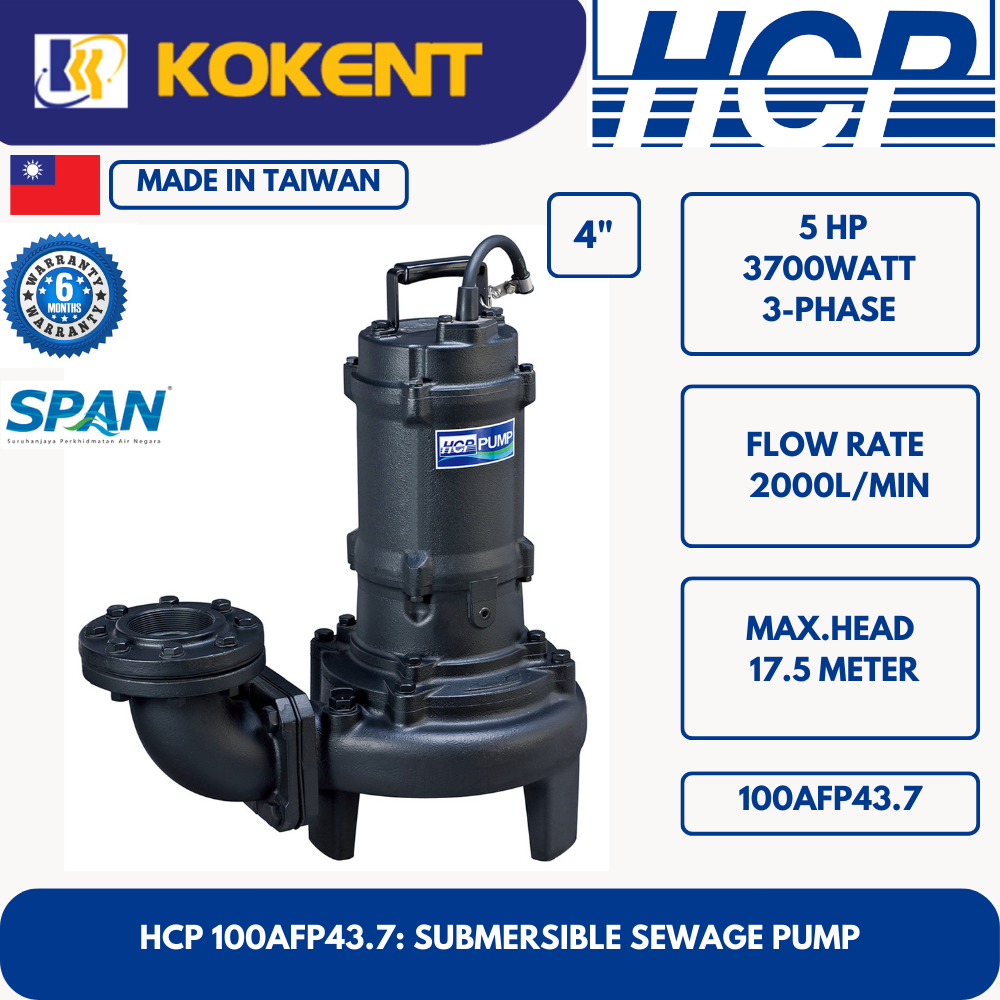

HCP 100AFP43.7 (made in Taiwan) is a submersible pump for sewage water.

  • 3 phase

Features

  • International standard design : cable, auto-cut, dry-motor, silicon carbide mechanical seal, high grade cast iron offering highest quality and performance.
  • P/U/E multiple impeller designs to handle sewage solids and/or fibrous substances.
  • Superior abrasion resistant mechanical seal manufactured with silicon carbide to ensure the best seal effect.
  • Oil lip seal mounted outside of seal chamber stops solids gathering around seal faces.
  • Full range offering low to high head and flow capabilities, with compact and easy installation.
  • Available with Guide Rail System, which allows automatic remote connection and disconnection without entering the pit.

Applications

  • Drainage of waste water from the attenuation tank, purifying tank and sewage tank in water treatment plant.
  • Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
  • Sewage management, accumulated water, septic tank, stock farm.

Specifications

Power 5 HP (3700 watts)
Discharge 4″ (100mm)
Phase
Start Method Direct
Efficient / Maximum Head 11.5 / 17.5 meters
Efficient / Maximum Flow Rate 1000 / 2000 L/min
Solid Passage 50mm
Weight 67 kg
