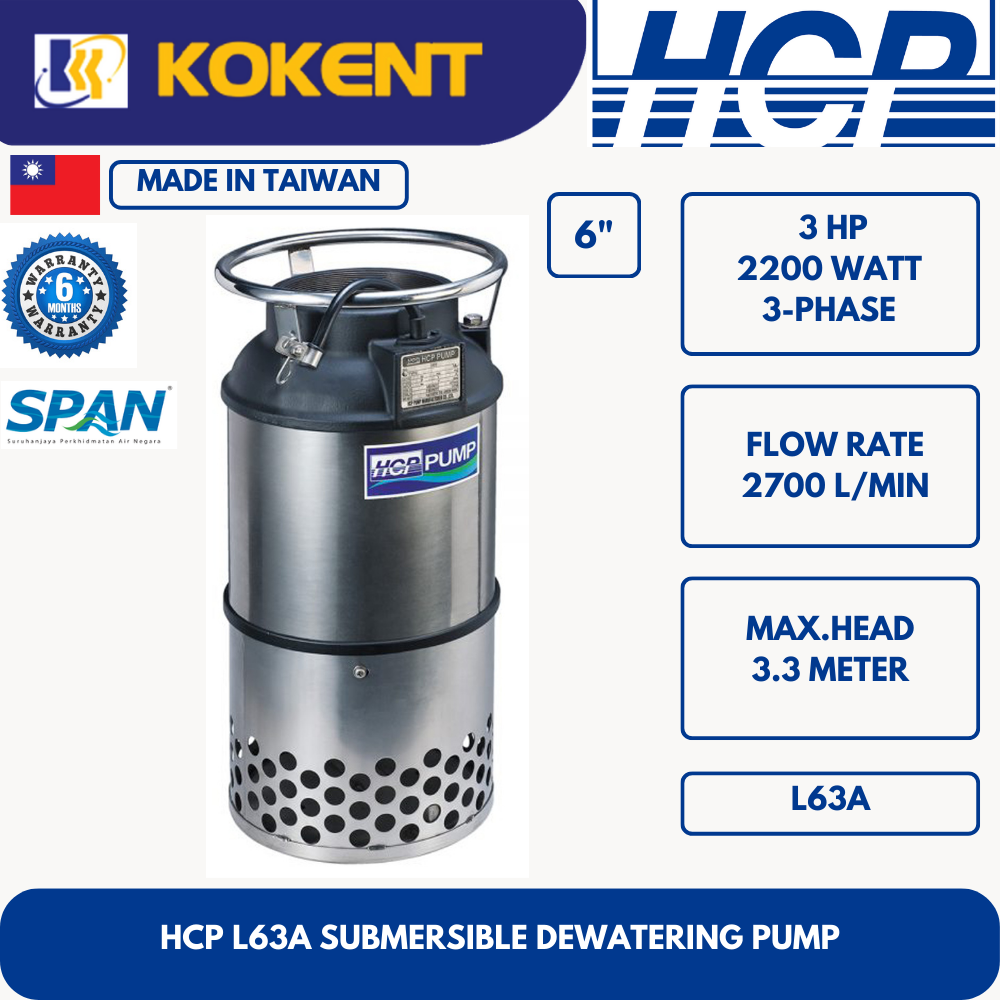

HCP SUBMERSIBLE DEWATERING PUMP L63A

PREFER CONTACT KENT

Description

Model: L63A

HCP L63A (made in Taiwan) is large volume submersible dewatering pump.

• 3 phase

Features

• Large flow capacities achieved with almost no vibration or noise by use of Axial & Mix Flow design.
• Robust construction and compact design with a dry motor, double mechanical seal and impeller flow guide vane for high efficiency.
• Easy handling, energy saving and low maintenance.
• High efficiency motor directly connects to impeller to achieve best energy savings.
• Pump manufactured with heavy duty housing, cable leads are isolated by hardened epoxy for water proofing, double mechanical seal.
• Achieved IP68 (highest submersible water resistant protection rating), keeps pumps dust free and water proof to provide extended pump life and performance.
• Shaft and impeller are precisely balanced for quiet and long life performance
• 3D computerised design of impeller and vanes conductive design provide highest pump efficiency and stability.
• Casted ALBC3 material (Aluminium Bronze) impeller, it has a great abrasion and corrosion resistance.

Applications

• Aquiculture water pumping and drainage for large volume water applications.
• Water supply for landscape, water features, cooling in the power plant or drainage for industrial.
• Water extracting from rivers, lakes and reservoirs.
• Flood control or used for large volume dewatering.
• Others : Extraction of water from dock and river.

Limits Of Use

• Liquid Temperature: 0~40°C
• Submersion Depth: 30m (100ft)

Specifications
