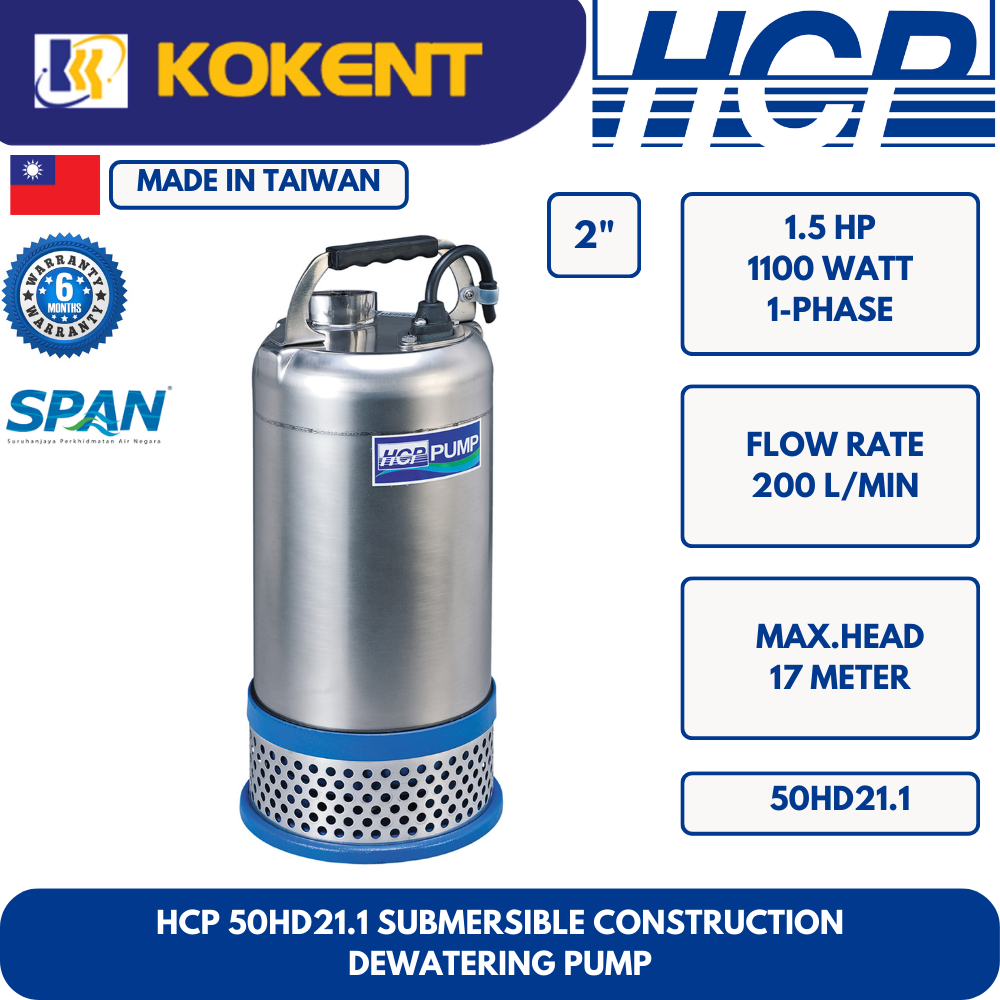

HCP SUBMERSIBLE CONSTRUCTION DEWATERING WATER PUMP 50HD21.1

HCP SUBMERSIBLE CONSTRUCTION DEWATERING WATER PUMP 50HD21.1
HCP SUBMERSIBLE CONSTRUCTION DEWATERING WATER PUMP 50HD21.1

HCP SUBMERSIBLE CONSTRUCTION DEWATERING WATER PUMP 50HD21.1

Product Code: 50HD21.1
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: 50HD21.1

HCP 50HD21.1 (made in Taiwan) is a submersible dewatering pump for civil engineering, dewatering, tunnel, ground works, mining & manhole sewer.

  • Carry with Outlet Flange
  • 1 phase
  • Former Model: AS215

Features

  • Designed for civil engineering applications; its easy portability, double outer casing and water cooling motor make it possible to run the pump to low water level.
  • The pumps are durable and leakproof structure with automatic resetting motor protection and double mechanical seals made of silicon carbide.
  • The internal casting is coated with High Solid Epoxy coating to prolongs metals from corrosion and oxidisation.
  • Multi-impeller design with High Chrome Alloy Steel (HiCrFC) impeller, wear plate and wear rings with a hardness if 55-60 Rockwell. It is the hardest and toughest impeller among the construction pump and against abrasion.
  • The pumps are durable with Epoxy Resin Cable, IP68 waterproof structure, automatic resetting and double mechanical seal made of silicon carbide.

Applications

  • Civil engineering, dewatering, tunnel, ground works, mining and manhole sewer.
  • Industrial wastewater dewatering or recycling fluids containing solid sediments for Gravel pit, Sand and Gravel plant.
  • Mobile use for contractors, installers and industries.

Specifications

Power 1.5 HP (1100 watts)
Discharge 2″ (50mm)
Phase
Start Method Capacitor
Efficient / Maximum Head 13.5 / 17 meters
Efficient / Maximum Flow Rate 200 / 400 L/min
Solid Passage 7.5mm
Weight 28 kg
