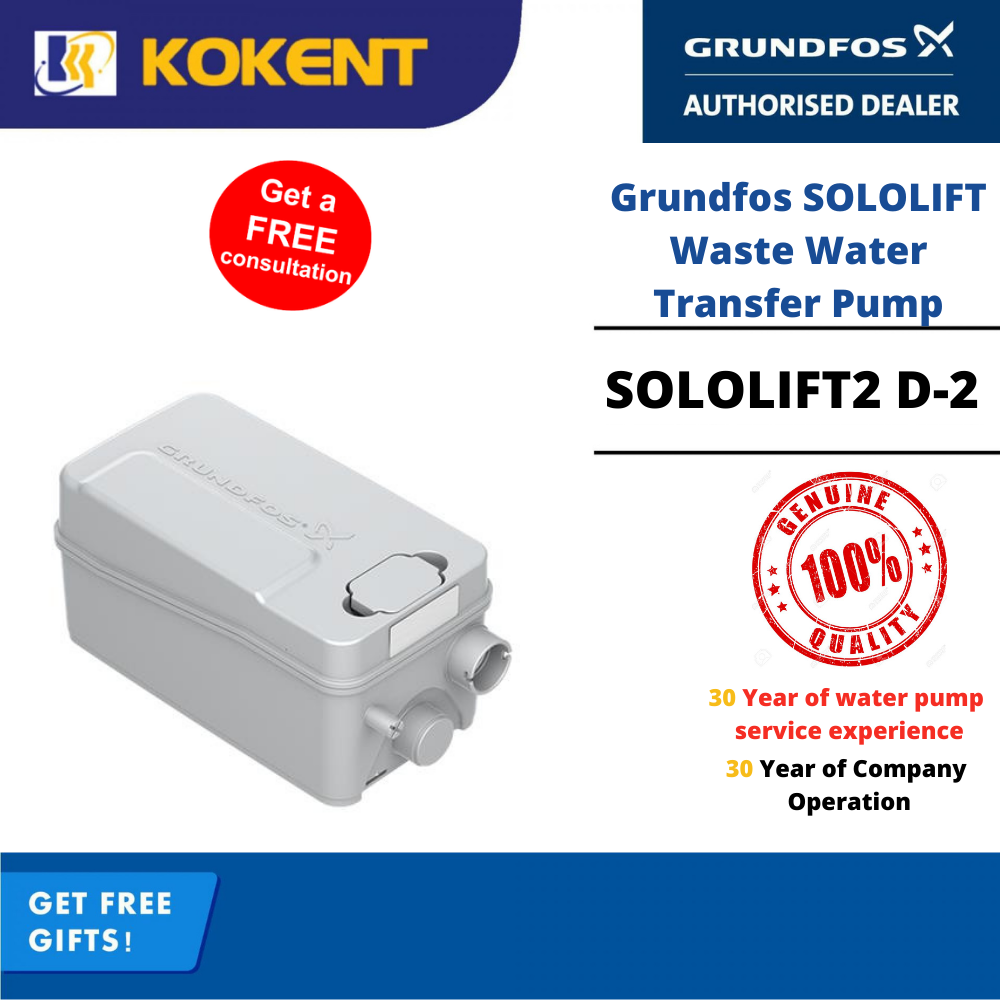

Grundfos Waste Water Transfer Pump SOLOLIFT2 D-2

Grundfos  Waste Water Transfer Pump SOLOLIFT2 D-2
Grundfos  Waste Water Transfer Pump SOLOLIFT2 D-2

Grundfos Waste Water Transfer Pump SOLOLIFT2 D-2

Product Code: SOLOLIFT2 D-2
Availability: In Stock
Loading ...
Share:

PREFER CONTACT US

Why Choose KOKENT ENTERPRISE?
We have more than 30 year of company operation and Water Pump Service Experience ! And not only for Water Pump ! We also Selling Hardware and Machinery ( Power tools, Hydraulic equipment, Workshop Equipment, and Pump Equipment etc) Good service and price
Slogan {We always hope our customer can buy happy not just product}''

1) Kokent Enterprise Sdn Bhd (Easy to search in Waze , Google Map)
    No. 522, Jln Cheras, Batu 3 1/4, 56100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur

2) Grundfos Authorized Dealer, 100% Original Product !

3) Free consultation on installation and service repair !

4) Repair spare part ready stock !

Suitable for



  • Commercial wastewater
  • Domestic wastewater
  • Industrial wastewater treatment & reuse

Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3.

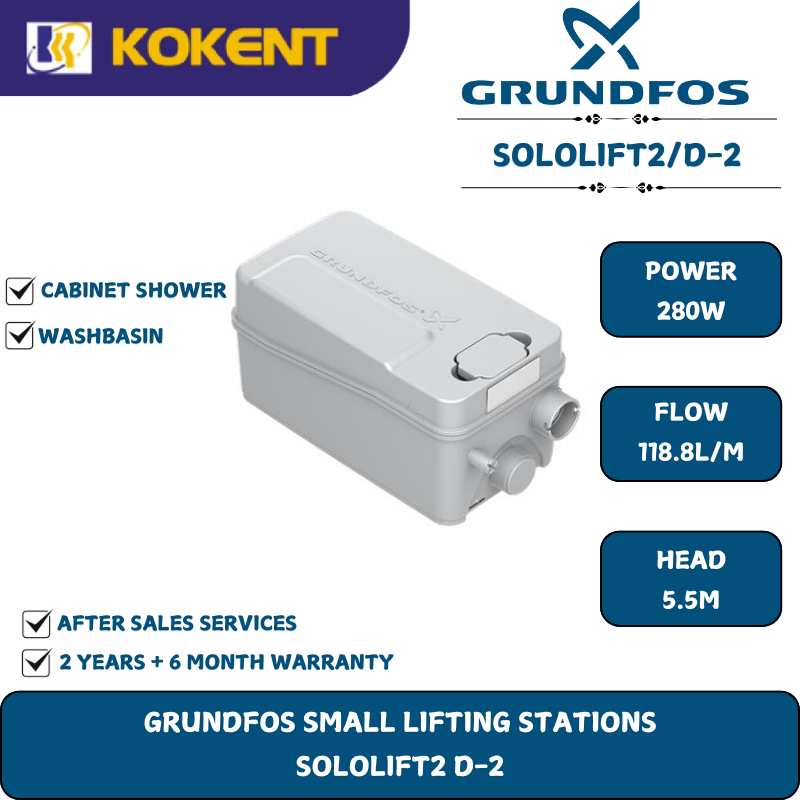

SOLOLIFT2 D-2

Sololift2 D-2 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where greywater (w/o faeces) cannot be led directly to the sewer by means of a natural downward slope.

Sololift2 D-2 is typically used for:

  • cabinet showers, washbasins or bidets in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

Sololift2 D-2 is suitable for confined space conditions in built-in cabinets or also below shower receptors or pedestals.

The pumping of liquids containing other material may cause faults and limit the scope of our guarantee.

The compact lifting station is equipped with

  • Cable with or without plug (see technical data)
  • Discharge hose connector with several adaptors for pipes with Ø22-36mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, pressure switch and controller
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.



Specifications



Product name SOLOLIFT2 D-2
Product No 97775318
EAN number 5710624187272
Price


Technical

Head max 5.5 m
Approvals on nameplate CE,TR,VDEEMV,VDE,MORO
Curve tolerance ISO9906:2012 3B


Materials

Tank Plastic


Installation

Pump inlet 36/40/50
Pump outlet 22/32
Number of leads 3X0,75MM2


Liquid

Maximum liquid temperature 50 °C
Density 998.2 kg/m³


Electrical data

Power input - P1 280 W
Mains frequency 50 Hz
Rated voltage 1 x 220-240 V
Rated current 1.3 A
Cos phi - power factor 0.95
Rated speed 2800 rpm
Enclosure class (IEC 34-5) IP44
Insulation class (IEC 85) F
Thermal protec THERMIK S06-160-05
Length of cable 1.2 m
Cable type H05VV-F-3G
Type of cable plug SCHUKO


Others

Net weight 4.69 kg
Gross weight 6.25 kg
Product range International
Danish VVS No. 614366632
