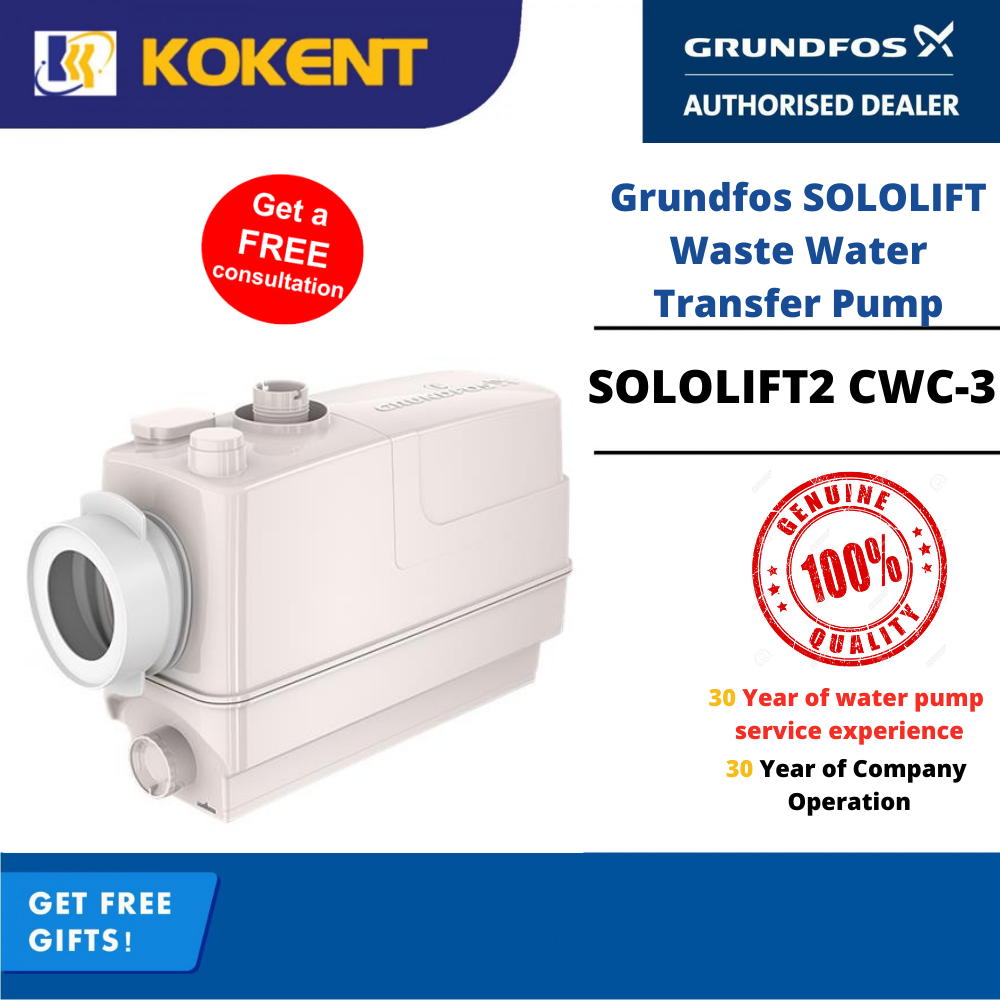

SOLOLIFT2 CWC-3

Suitable for

Commercial wastewater
Domestic wastewater
Industrial wastewater treatment & reuse

Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3.

SOLOLIFT2 CWC-3

Sololift2 CWC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:

wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is suitable for installation in a hollow space behind a wall-hung toilet. This lifting station is only suitable for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The compact lifting station is equipped with

Cable with or without plug (see technical data)
Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
integrated non return valve
Dry and high performance motor unit incl. thermal protection, pressure switch and controller
DN100 toilet connection hose
Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
Slot for an alarm board with buzzer (accessory)
Manual anti clogging function and separate drain connection for service
Venting valve with overflow protection
Uplift fixation clips

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Specifications

Product name	SOLOLIFT2 CWC-3
Product No	97775316
EAN number	5710624187258
Price

Technical

Head max	8.5 m
Approvals on nameplate	CE,TR,VDEEMV,VDE,MORO
Curve tolerance	ISO9906:2012 3B

Materials

Tank

Plastic

Installation

Pump inlet	32/36/40, 36/40/50, DN 100
Pump outlet	22/25/28/32/36/40
Number of leads	3X0,75MM2

Liquid

Maximum liquid temperature	50 °C
Density	998.2 kg/m³

Electrical data

Power input - P1	620 W
Mains frequency	50 Hz
Rated voltage	1 x 220-240 V
Rated current	3 A
Cos phi - power factor	0.92
Rated speed	2800 rpm
Enclosure class (IEC 34-5)	IP44
Insulation class (IEC 85)	F
Thermal protec	THERMIK S06-150-05
Length of cable	1.2 m
Cable type	H05VV-F-3G
Type of cable plug	SCHUKO
