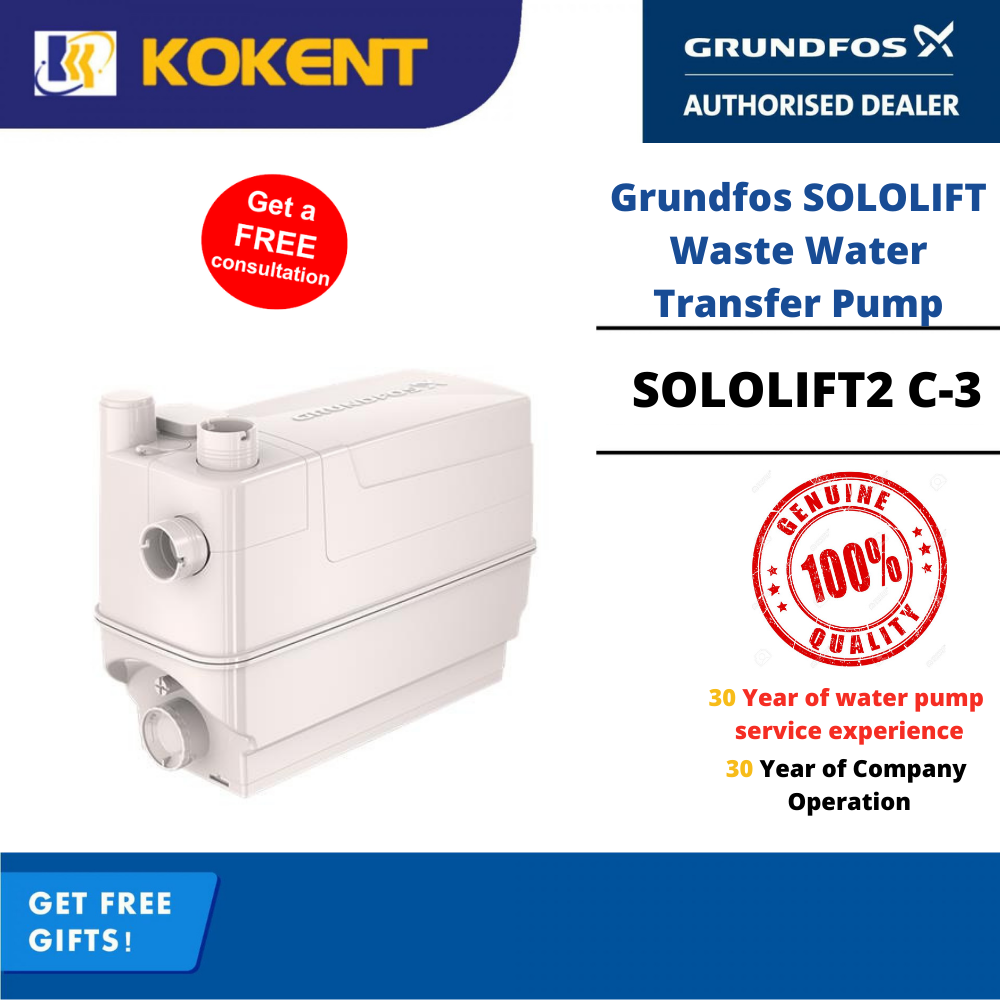

Grundfos Waste Water Transfer Pump SOLOLIFT2 C-3

Grundfos Waste Water Transfer Pump SOLOLIFT2 C-3
Grundfos Waste Water Transfer Pump SOLOLIFT2 C-3

Grundfos Waste Water Transfer Pump SOLOLIFT2 C-3

Product Code: SOLOLIFT2 C-3
Availability: In Stock
Loading ...
Share:

PREFER CONTACT US



Why Choose KOKENT ENTERPRISE?
We have more than 30 year of company operation and Water Pump Service Experience ! And not only for Water Pump ! We also Selling Hardware and Machinery ( Power tools, Hydraulic equipment, Workshop Equipment, and Pump Equipment etc) Good service and price
Slogan {We always hope our customer can buy happy not just product}''

1) Kokent Enterprise Sdn Bhd (Easy to search in Waze , Google Map)
    No. 522, Jln Cheras, Batu 3 1/4, 56100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur

2) Grundfos Authorized Dealer, 100% Original Product !

3) Free consultation on installation and service repair !

4) Repair spare part ready stock !



SOLOLIFT2 C-3

Suitable for

  • Commercial wastewater
  • Domestic wastewater
  • Industrial wastewater treatment & reuse

Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3.


Sololift2 C-3 is typically used for:

  • cabinet showers, washbasins, bath tubs, washing machines (max. 90°C) and dishwashers in basements below sewer level or in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Sololift2 C-3 is suitable for installation under a washbasin or particularly for confined space conditions in prewall constructions and built-in cabinets. Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

The compact lifting station is equipped with

  • Cable with or without plug (see technical data)
  • Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, level switch and controller
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Specifications



Product name SOLOLIFT2 C-3
Product No 97775317
EAN number 5710624187265


Technical

Actual calculated flow
Resulting head of the pump m
Head max 8.5 m
Approvals on nameplate CE,TR,VDEEMV,VDE,MORO
Curve tolerance ISO9906:2012 3B


Materials

Tank Plastic


Installation

Pump inlet 32/36/40, 36/40/50
Pump outlet 22/25/28/32/36/40
Number of leads 3X0,75MM2


Liquid

Pumped liquid Any Newtonian liquid
Maximum liquid temperature 75(90) °C
Density 998.2 kg/m³


Electrical data

Power input - P1 640 W
Mains frequency 50 Hz
Rated voltage 1 x 220-240 V
Rated current 3.1 A
Cos phi - power factor 0.9
Rated speed 2800 rpm
Enclosure class (IEC 34-5) IP44
Insulation class (IEC 85) F
Thermal protec THERMIK S06-140-05
Length of cable 1.2 m
Cable type H05VV-F-3G
Type of cable plug SCHUKO


Others

Net weight 7.75 kg
Gross weight 9.3 kg
Product range International
Danish VVS No. 614365632
