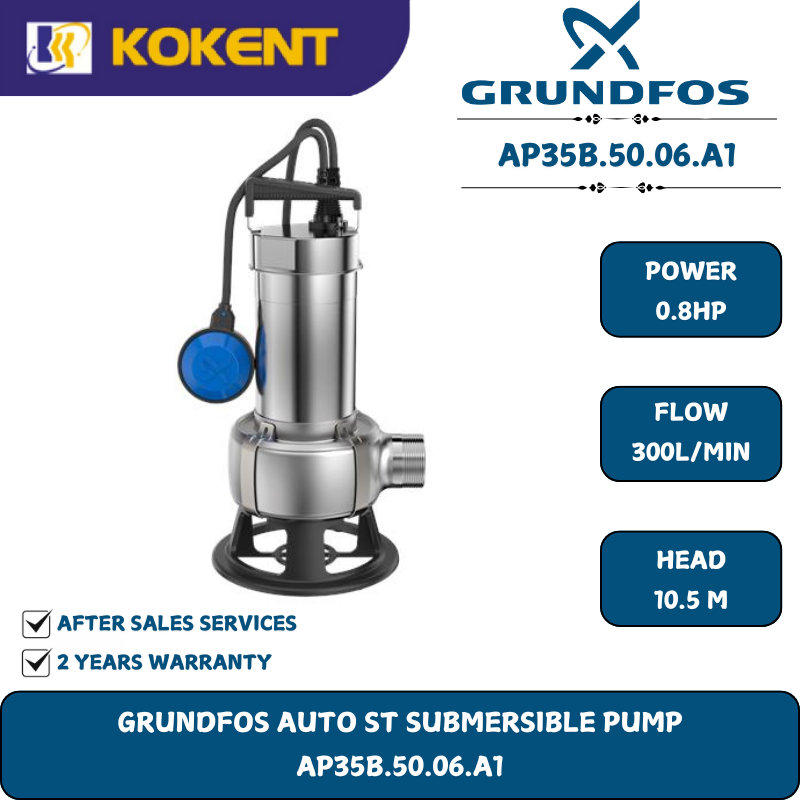

Grundfos Unilift Auto Submersible Pump AP35B.50.06.A1
PREFER CONTACT US
Why Choose KOKENT ENTERPRISE?
We have more than 30 year of company operation and Water Pump Service Experience ! And not only for Water Pump ! We also Selling Hardware and Machinery ( Power tools, Hydraulic equipment, Workshop Equipment, and Pump Equipment etc) Good service and price
Slogan {We always hope our customer can buy happy not just product}''
1) Kokent Enterprise Sdn Bhd (Easy to search in Waze , Google Map)
No. 522, Jln Cheras, Batu 3 1/4, 56100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
2) Grundfos Authorized Dealer, 100% Original Product !
3) Free consultation on installation and service repair !
4) Repair spare part ready stock !
Suitable for
- Commercial wastewater
- Domestic wastewater
Grundfos UNILIFT AP35B are stainless-steel submersible pumps designed for pumping effluents (excluding toilet discharge), with particles up to 35 mm. The pump is suitable for installation on auto coupling, allowing for easy access to the pump for maintenance and other purposes.

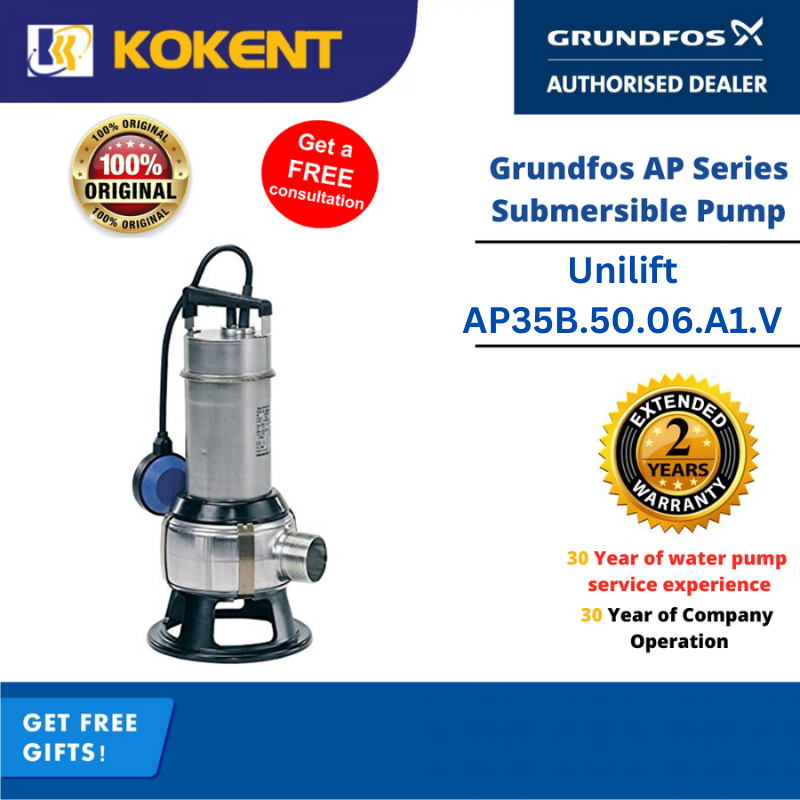

Unilift AP35B.50.06.A1.V
Submersible effluent pump
Vertical single-stage stainless steel submersible pump with integrated submersible 1-phase motor.
The pump is fitted with ring stand and carrying handle and is supplied with a 5 m mains cable and a level switch for automatic start and stop.
The impeller is a VORTEX impeller for 35 mm free passage suitable for pumping surface water, groundwater, wastewater and similar.
The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.
The motor is insulation class F with thermal overload protection and has long-life deep-groove greased-for-life ball bearings.
The pump has R 2'' discharge port and is ready for installation either free-standing or on an auto-coupling system.
Specifications
| Product name | Unilift AP35B.50.06.1.V |
| Product No | 96004563 |
| EAN number | 5700391488603 |
| Price |
Technical
| Maximum flow | 5 l/s |
| Max flow | 5 l/s |
| Head max | 11 m |
| Type of impeller | V |
| Maximum particle size | 35 mm |
Materials
| Pump housing | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |
| Impeller | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 |
Installation
| Pump outlet | R 2'' |
| Maximum installation depth | 7 m |
| Inst dry/wet | S |
| Auto-coupling | Y |
Liquid
| Maximum liquid temperature | 40 °C |
| Density | 998.2 kg/m³ |
Electrical data
| Motor type 1-phase | PSC |
| Power input - P1 | 1 kW |
| P2 | 0.66 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Rated current | 4.6 A |
| Cos phi - power factor | 0.98 |
| Rated speed | 2810 rpm |
| Capacitor size - run | 16 µF/400 V |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Motor protec | CONTACT |
| Thermal protec | internal |
| Length of cable | 10 m |
| Type of cable plug | SCHUKO |
Others
| Net weight | 10.3 kg |
| Gross weight | 11.9 kg |
| Liquid: | ||
| Pumped liquid: | Any Newtonian liquid | |
| Maximum liquid temperature: | 40 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Type of impeller: | VORTEX | |
| Maximum particle size: | 35 mm | |
| Materials: | ||
| Pump housing: | Stainless steel | |
| DIN W.-Nr. 1.4301 | ||
| AISI 304 | ||
| Impeller: | Stainless steel | |
| DIN W.-Nr. 1.4301 |
| AISI 304 | ||
| Installation: | ||
| Pump outlet: | R 2'' | |
| Maximum installation depth: | 2 m | |
| Auto-coupling: | Y | |
| Electrical data: | ||
| Type of motor: | PSC | |
| Power input - P1: | 1 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 230 V | |
| Rated current: | 4.6 A | |
| Cos phi - power factor: | 0.98 | |
| Rated speed: | 2810 rpm | |
| Capacitor size - run: | 16 µF/400 V | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | F | |
| Length of cable: | 5 m | |
| Type of cable plug: | SCHUKO | |
| Others: | ||
| Net weight: | 9.5 kg | |
| Gross weight: | 10.5 kg | |
| Danish VVS No.: | 391270312 | |
| Swedish RSK No.: | 5885932 | |
| Finnish LVI No.: | 4822556 | |
| Norwegian NRF no.: | 9045601 |
