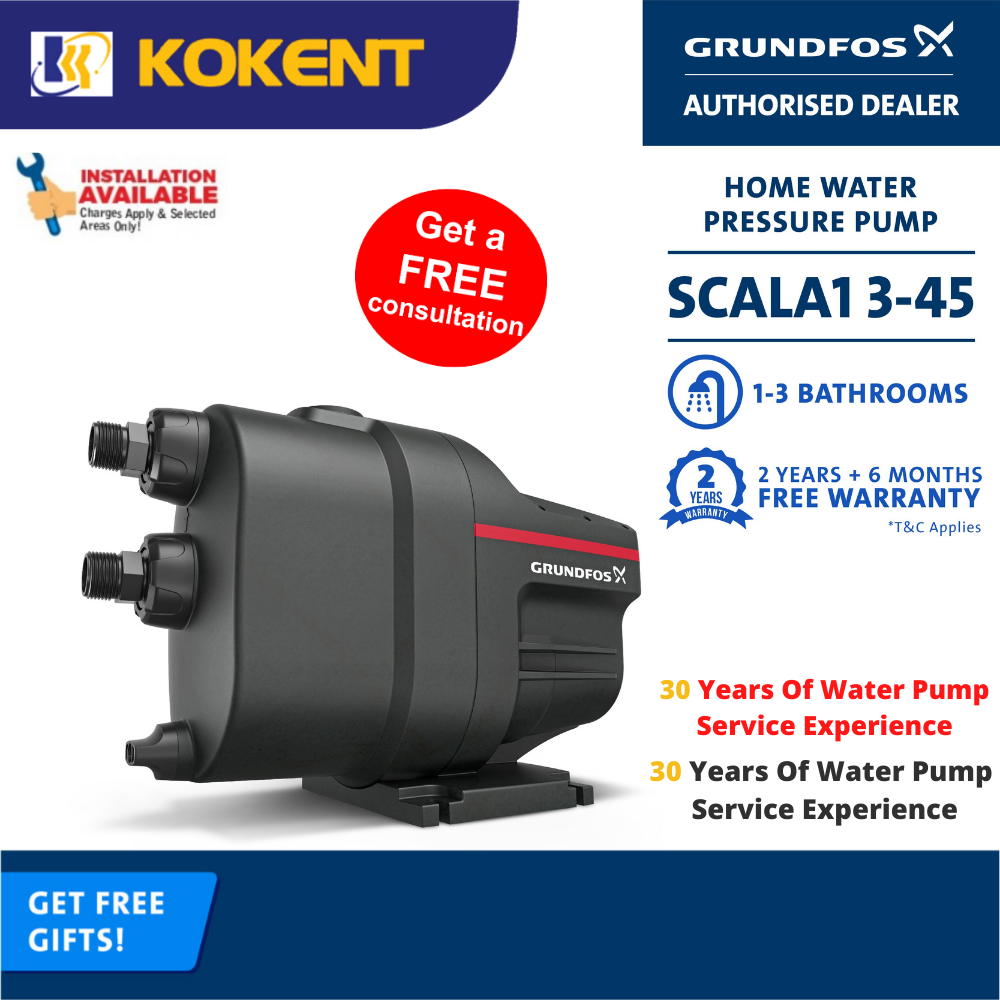

Grundfos SCALA1 3-45 Home Living Automatic Water Booster Pump Pam Air 0.78HP Suitable For 1-3 Bathroom

Grundfos SCALA1 3-45 Home Living Automatic Water Booster Pump Pam Air 0.78HP Suitable For 1-3 Bathro

Product Code: SCALA1 3-45

Availability: In Stock

017 432 8850 012 387 8850

Description

PREFER CONTACT US PLS

Why Choose KOKENT ENTERPRISE?
We have more than 30 year of company operation and Water Pump Service Experience ! And not only for Water Pump ! We also Selling Hardware and Machinery ( Power tools, Hydraulic equipment, Workshop Equipment, and Pump Equipment etc) Good service and price
Slogan {We always hope our customer can buy happy not just product}''

1) Kokent Enterprise Sdn Bhd (Easy to search in Waze , Google Map)
No. 522, Jln Cheras, Batu 3 1/4, 56100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur

2) Grundfos Authorized Dealer, 100% Original Product !

3) Free consultation on installation and service repair !

4) Repair spare part ready stock !

Grundfos Booster Water Pump NEW LAUNCH !!!
If you want the best comfort in your home, the obvious choice in water solutions is Grundfos. Our range of premium products will provide you with perfect water pressure all over the house or allow you to install a second bathroom anywhere in the house.

Product name: SCALA1 3-45
Suitable for:

Commercial water pressure boosting
Domestic ground water intake
Domestic water pressure boosting
Domestic rainwater harvesting

The Grundfos SCALA1 is a fully integrated, all-in-one, self-priming, compact waterworks designed for pressure boosting in domestic and light-commercial applications, such as garden irrigation or pressure boosting to one and two family houses and apartments.

The Grundfos SCALA1 is a self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure.

As it is self-priming, the SCALA1 can pump water from a level below the pump. Provided it is filled with water, the pump can lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.

SCALA1 can communicate with Grundfos GO app via built in Bluetooth, which enables detailed pump monitoring and high customization options, making this pump a good fit for every application.

SCALA1 incorporates advanced protection features such as: Dry running protection that will automatically stop the pump in case of water shortage Cycling protection which will prevent pump starting frequently in case of minor leakages in installation Max runtime protection can stop the pump after a desired period of continuous operation, preventing potential damage due flooding in case in case of pipe breakages.

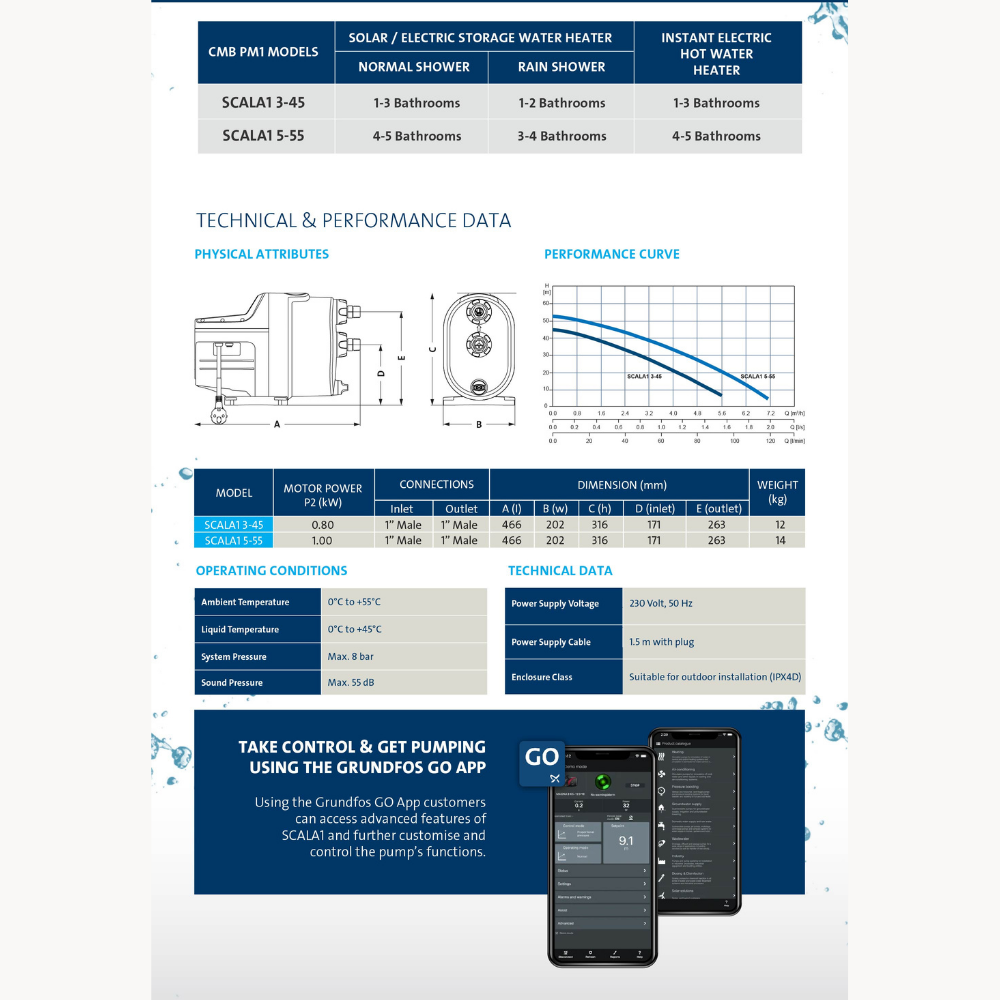

Specifications

Product name	SCALA1 3-45
Product No	99530425
EAN number	5713830592595
Price	MYR 2300

Technical

Rated flow	3.59 m³/h
Rated head	25 m
Maximum head	44 m
Shaft seal type	BVBP
Approvals	CE
Approvals for drinking water	WRAS,ACS
Curve tolerance	ISO9906:2012 3B
Model	A
Start pressure	2.2 bar

Materials

Pump housing	Composite
Impeller	Composite

Installation

Range of ambient temperature	0 .. 55 °C
Maximum operating pressure	8 bar
Maximum permissible inlet pressure	3 bar
Type of inlet connection	R
Type of outlet connection	R
Size of inlet connection	1 inch
Size of outlet connection	1 inch
Pressure rating for connection	PN 8

Liquid

Pumped liquid	Water
Liquid temperature range	0 .. 45 °C
Selected liquid temperature	20 °C
Density	998.2 kg/m³

Electrical data

Length of power cable	1.5 m
P1 max.	910 W
Rated power - P2	0.58 kW
Mains frequency	50 Hz
Rated voltage	1 x 230 V
Maximum current consumption	4.1 A
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Power plug	Type G (BS1363)
	UK plug
