Generator

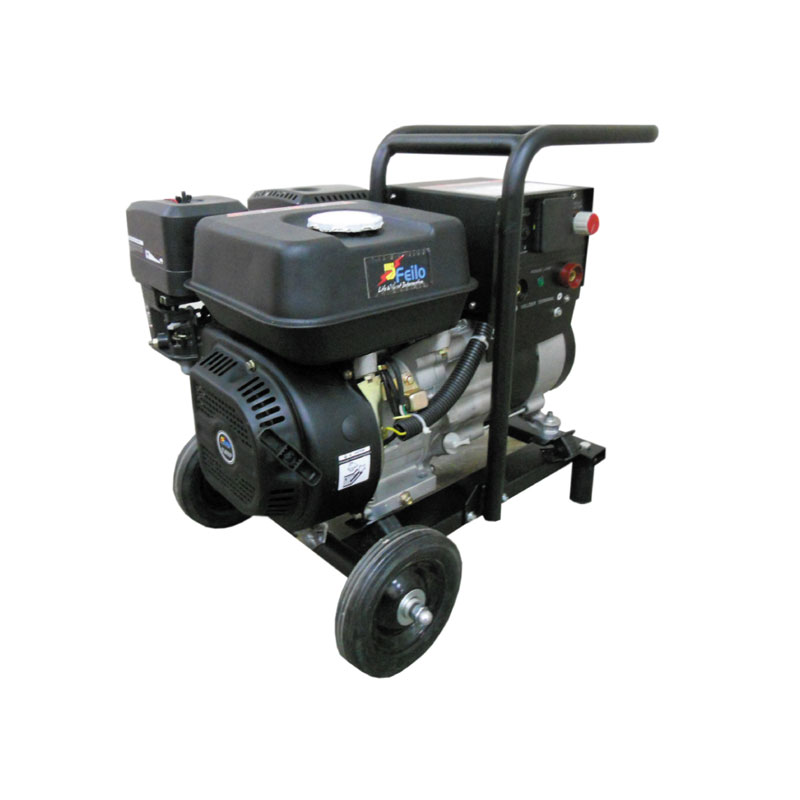

Product Code: Feilo Welder FL-FW100
Availability: Pre Order
- Specifications
| Model | FL-FW100 |
| HP | 7HP |
| Displacement (ml) | 208 |
| Ignition System | Non-contact transistor Ignition |
| Starting System | Recoil Start |
| Type | 2-pole, Rotating Magnetic Field |
| Rated Voltage (V) | 230 |
| Rated Frequency (Hz) | 50 |
| Rated Output (KW) | 0.5 |
| Max. Output (KW) | 0.6 |
| Welding Rated Voltage DC(V) | 22-28 |
| Rated Current (A) & Duty Cycle | 80A-60%; 60A-80%; 40A-100% |
| Current Adjustment Range (A) | 20-100 |
| Diameter of electrode (mm) | 1.5-3.2 |
| Oil Volume (L) | 3.6 |
| Fuel consumption at full load (L/h) | 1.7 |
| N.W (kg) | 40 |
